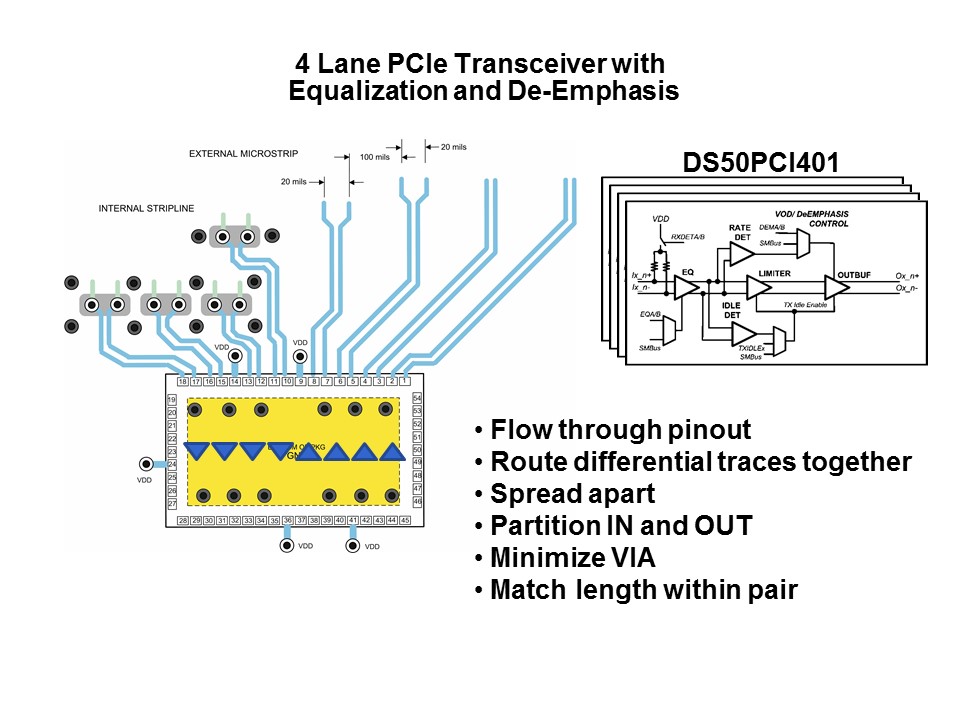

The DS50PCI401 block diagram is shown here along with a typical board design. The pinout features a flow through layout for optimized differential pair routing. Note that the “in” and “out” signals are separated and a symmetrical and balanced layout for the signals is used to construct the signal pairs.
