LMP8480 and LMP8481 Current Sense Amplifiers Slide 5

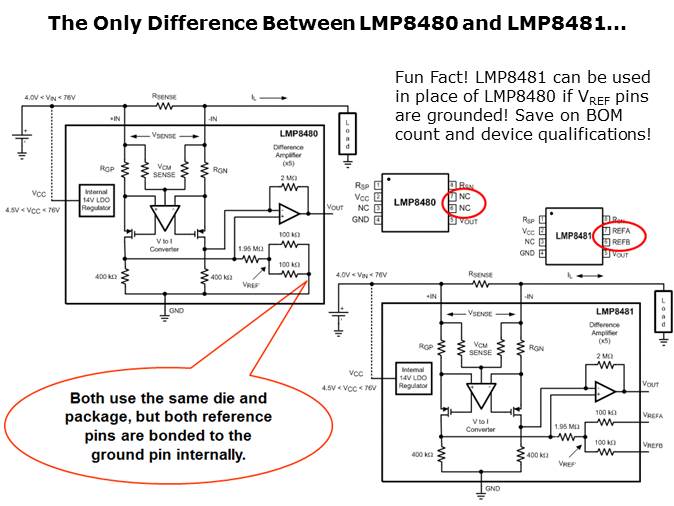

The fact that the only difference between the LMP8480 and LMP8481 is the presence (or absence) of the reference input pins. If the LMP8481 pins were to be grounded on the PCB, then it would be the same as a LMP8480.

PTM Published on: 2013-09-11
