TLV320AIC3254 Low-Power 1.8 Audio Codec
Produce feature-rich consumer electronics products with better audio quality and longer battery life with the TLV320AIC3254

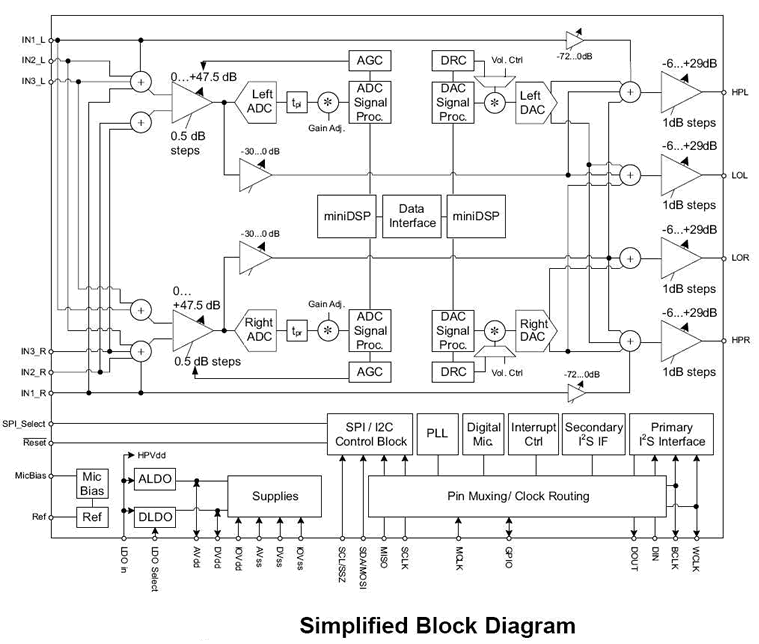

The TLV320AIC3254 is a low-power audio codec with an integrated miniDSP, PowerTune™ technology and single-supply operation.
The miniDSP off-loads the host processor and allows users to run complex algorithms such as noise and echo cancellation. PowerTune technology provides maximum flexibility for power consumption control. This control means that a device can be set for very low power and good signal-to-noise ratio (SNR) or low power and very good SNR. The codec's single-supply operation makes audio design easier as well as less expensive.

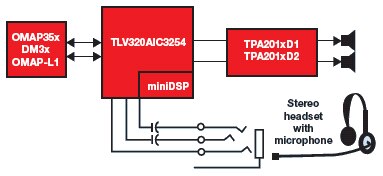

Portable Media Player Block Diagram
Features
- PowerTune™ technology
- DAC: 90 dB @ 7.7 mW
- 100 dB @ 9.1 mW
- ADC: 86 dB @ 8.4 mW
- 93 dB @ 14.2 mW
- miniDSP - Two independent cores: One on of each the ADC and DAC, which can also be synchronized
- Integrated LDO for single-supply operation
Applications
- Cell phones
- Portable navigation devices (PND)
- Portable media players (PMP)
- MP3 players
- Systems that require lowest power usage possible
TLV320AIC3254 Audio Codec
| 图片 | 制造商零件编号 | 描述 | 分辨率（位） | ADC/DAC 数 | 可供货数量 | 价格 | ||
|---|---|---|---|---|---|---|---|---|
 |  | TLV320AIC3254IRHBR | IC STEREO AUDIO CODEC 1.8V 32QFN | 32 b | 2 / 2 | 3457 - 立即发货 |
1 : ¥66.24
剪切带（CT）
3000 : ¥30.88
卷带（TR）
1 : ¥66.24
Digi-Reel® 得捷定制卷带
| 查看详情 |
发布日期： 2009-02-06
