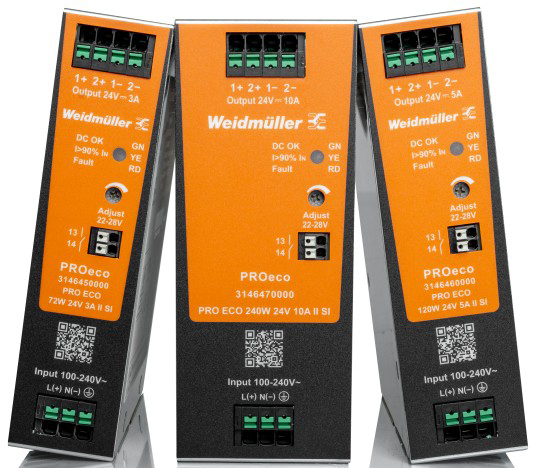

PROeco II Power Supplies with SNAP IN
Weidmüller PROeco II power supplies are the industry’s first power supplies with SNAP IN technology
Weidmüller PROeco II next-generation power supplies are the first to feature SNAP IN technology. These power supplies provide fast connection technology, with added serviceability and reduced wiring effort. PROeco II SNAP IN models are made for productivity-focused applications, such as OEM machine building, industrial automation and robotics, material handling, building automation and energy applications.
The Weidmüller connectPower PROeco II series features industrial power supplies with up to 95% efficiency, reducing heat and operating costs. It features a compact design, three-color health signaling, improved MTBF for longer life and compatibility with DC UPS, load monitoring, and diode modules. Designed for easy integration into existing systems, it offers advanced performance at a competitive price, making it a flexible and cost-effective solution for modern power management.
Resources
- Robust and durable: Operates across a wide temperature range; reliable startup at -40°C
- Long lifetime expectancy: High MTBF > 1,000,000 hours
- Space saving: Slim 32 mm width and 100 mm depth for tight control cabinets
- Energy efficient: Up to 95% efficiency with very low idle power consumption
- Simple and fast diagnostics: Tricolor LED indicators and integrated status relay
- Worldwide use: Global approvals and universal input range
- Quick tool free installation: SNAP IN terminals for faster wiring
- Safe installation: Audible click confirms proper connection
- Ready to robot: Optimized for automated manufacturing processes
- Data centers
- Energy and utilities
- OEM machine builders
- Industrial automation and robotics
- Material handling and warehouse automation
- Process and manufacturing industries
- Transportation and infrastructure
- Building automation and infrastructure
- Input voltage ranges
- PROeco II
- 85 VAC to 264 VAC
- 110 VDC to 370 VDC
- PRO ECO3
- 3 x 320 VAC to 3 x 575 VAC
- 450 VDC to 800 VDC
- Output
- 22 VDC to 28 VDC or 35 VDC to 56 VDC voltage range
- 3 A to 40 A rated current range
- 72 W to 960 W rated power range
- 88% to 95% efficiency range
PROeco II Power Supplies with SNAP IN
| 图片 | 制造商零件编号 | 描述 | 可供货数量 | 价格 | 查看详情 | |
|---|---|---|---|---|---|---|
 | 3146450000 | PROECO II 72W 24V 3A SNAP IN | 9 - 立即发货 | $1,003.76 | 查看详情 | |
| 3146460000 | PROECO II 120W 24V 5A SNAP IN | 10 - 立即发货 | $1,219.19 | 查看详情 | |
| 3146470000 | PROECO II 240W 24V 10A SNAP IN | 10 - 立即发货 | $1,762.43 | 查看详情 |
PROeco II Power Supplies
| 图片 | 制造商零件编号 | 描述 | AC 电压 - 输入 | 可供货数量 | 价格 | 查看详情 | |
|---|---|---|---|---|---|---|---|
 |  | 3025560000 | SWITCH-MODE POWER SUPPLY, 72W 24 | 85 ~ 264 VAC | 8 - 立即发货 235 - 厂方库存 | $987.39 | 查看详情 |
|  | 3025570000 | SWITCH-MODE POWER SUPPLY, 120W 2 | 85 ~ 264 VAC | 15 - 立即发货 2000 - 厂方库存 | $1,221.09 | 查看详情 |
|  | 3025580000 | SWITCH-MODE POWER SUPPLY, 240W 2 | 85 ~ 264 VAC | 29 - 立即发货 304 - 厂方库存 | $1,816.26 | 查看详情 |
| | 3025590000 | SWITCH-MODE POWER SUPPLY, 480W | 85 ~ 264 VAC | 10 - 立即发货 250 - 厂方库存 | $2,589.22 | 查看详情 |
|  | 3025600000 | SWITCH-MODE POWER SUPPLY, 960W 2 | 85 ~ 264 VAC | 4 - 立即发货 424 - 厂方库存 | $4,759.17 | 查看详情 |
| | 3025610000 | SWITCH-MODE POWER SUPPLY, 960W 4 | 85 ~ 264 VAC | 0 - 立即发货 4 - 厂方库存 | $4,961.11 | 查看详情 |
|  | 3025620000 | SWITCH-MODE POWER SUPPLY, 120W 2 | 320 ~ 550 VAC（3 相），360 ~ 550 VAC（2 相） | 4 - 立即发货 519 - 厂方库存 | $1,525.66 | 查看详情 |
|  | 3025630000 | SWITCH-MODE POWER SUPPLY,240W 24 | 320 ~ 575 VAC（3 相），360 ~ 575 VAC（2 相） | 1 - 立即发货 79 - 厂方库存 | $2,118.43 | 查看详情 |
|  | 3025640000 | SWITCH-MODE POWER SUPPLY,480W 24 | 320 ~ 575 VAC（3 相），360 ~ 575 VAC（2 相） | 1 - 立即发货 340 - 厂方库存 | $2,785.21 | 查看详情 |
| | 3025650000 | SWITCH-MODE POWER SUPPLY, 480W 4 | 320 ~ 575 VAC（3 相），360 ~ 575 VAC（2 相） | 1 - 立即发货 1 - 厂方库存 | $3,060.34 | 查看详情 |
| | 3025660000 | SWITCH-MODE POWER SUPPLY, 960W 2 | 320 ~ 575 VAC（3 相），360 ~ 575 VAC（2 相） | 1 - 立即发货 16 - 厂方库存 | $4,866.26 | 查看详情 |
|  | 3025670000 | SWITCH-MODE POWER SUPPLY, 960W | 320 ~ 575 VAC（3 相），360 ~ 575 VAC（2 相） | 2 - 立即发货 4 - 厂方库存 | $5,062.00 | 查看详情 |
