M Series Ratchet Coupling Type Connectors

M series connectors from LEMO are lightweight triple-start ratchet coupling type connectors

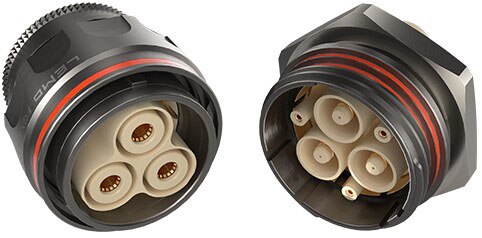

Image of LEMO M Series Ratchet Coupling Type ConnectorsThe M Series connector from LEMO offers an innovative design for motorsport applications and military systems. Made of high-strength aluminium, this connector is one of the lightest and most compact of the LEMO product line. A one-grip ratchet screw system enables quick and secure coupling of the connectors. The arctic grip makes it easy to manipulate the connector while wearing gloves or when the connector is located in a difficult to access area.

Features
  • Ratchet-coupling mechanism
  • Quick mating: 3/4 turn to seat
  • Compact design for space savings
  • Lightweight
  • Oil and fuel resistant
  • Scoop proof
  • High vibration and shock resistance
  • 360° screening for full EMC shielding
  • Sealed to IP68 when mated
  • Requires 2x the coupling force to unmate
  • Threaded for MIL-DTL-38999L backshell
  • Pin configuration from 2 to 114 contacts
Applications
  • Avionics
  • Aerospace
  • Military
  • Security
  • Motorsport
  • Heavy duty applications
更新日期： 2024-11-25

Receptacle Fixed With Flange

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT FMALE 5POS GOLD CRIMPEDN.0M.305.XLMCONN RCPT FMALE 5POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情
CONN RCPT FMALE 10POS GOLD CRIMPEDN.2M.310.XLMCONN RCPT FMALE 10POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情

Female Receptacles - Fixed - Rear Mount with Fixing Nut

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT FMALE 8POS GOLD SOLDERHEN.1M.308.XLNPCONN RCPT FMALE 8POS GOLD SOLDER-面板安装，通孔0 - 立即发货See Page for Pricing查看详情
CONN RCPT FMALE 8POS GOLD SOLDERHEN.2M.308.XLNPCONN RCPT FMALE 8POS GOLD SOLDER-面板安装，通孔4 - 立即发货
1 : ¥633.62
散装
查看详情
CONN RCPT FMALE 12POS GOLD SLDRHEN.2M.312.XLNPCONN RCPT FMALE 12POS GOLD SLDR-面板安装，通孔65 - 立即发货
1 : ¥766.68
散装
查看详情
CONN RCPT FMALE 30POS GOLD SLDRHEN.3M.330.XLNPCONN RCPT FMALE 30POS GOLD SLDR-面板安装，通孔128 - 立即发货
1 : ¥2,106.22
散装
查看详情

Male Receptacles - Fixed - Rear Mount with Fixing Nut

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT MALE 5POS GOLD SOLDERHES.1M.305.XLDPCONN RCPT MALE 5POS GOLD SOLDER-面板安装，通孔2 - 立即发货
1 : ¥762.63
散装
查看详情

Female Receptacles - Fixed - Rear Mount with Fixing Nut and Mold Stop

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT FMALE 3POS GOLD CRIMPPEN.0M.303.XLMTCONN RCPT FMALE 3POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情
CONN RCPT FMALE 5POS GOLD CRIMPPEN.0M.305.XLMTCONN RCPT FMALE 5POS GOLD CRIMP-面板安装78 - 立即发货
1 : ¥538.52
散装
查看详情
CONN RCPT FMALE 8POS GOLD CRIMPPEN.1M.308.XLMTCONN RCPT FMALE 8POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情
CONN RCPT FMALE 10POS GOLD CRIMPPEN.2M.310.XLMTCONN RCPT FMALE 10POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情

Male Receptacles - Fixed - Rear Mount with Fixing Nut and Mold Stop

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT MALE 5POS GOLD CRIMPPES.0M.305.XLCTCONN RCPT MALE 5POS GOLD CRIMP-面板安装0 - 立即发货See Page for Pricing查看详情

Receptacle - Fixed - Front Mount with Fixing Nut

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN RCPT FMALE 19POS GOLD CRIMPEGN.2M.319.XLMCONN RCPT FMALE 19POS GOLD CRIMP-面板安装37 - 立即发货
1 : ¥981.09
散装
查看详情

Female Plug – Free Hanging – with Artic Grip and Mold Stop

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN PLUG FMALE 5POS GOLD CRIMPFGS.0M.305.XLMTCONN PLUG FMALE 5POS GOLD CRIMP-自由悬挂78 - 立即发货
1 : ¥684.32
散装
查看详情
CONN PLUG FMALE 5POS GOLD CRIMPFGS.1M.305.XLMTCONN PLUG FMALE 5POS GOLD CRIMP-自由悬挂25 - 立即发货
1 : ¥855.75
散装
查看详情

Male Plug – Free Hanging – with Artic Grip and Mold Stop

图片制造商零件编号描述外壳尺寸，MIL安装类型可供货数量价格查看详情
CONN PLUG MALE 5POS GOLD CRIMPFGN.0M.305.XLCTCONN PLUG MALE 5POS GOLD CRIMP-自由悬挂45 - 立即发货
1 : ¥841.69
散装
查看详情
CONN PLUG MALE 8POS GOLD CRIMPFGN.1M.308.XLCTCONN PLUG MALE 8POS GOLD CRIMP-自由悬挂3 - 立即发货
1 : ¥872.95
散装
查看详情
CONN PLUG MALE 19POS GOLD CRIMPFGN.2M.319.XLCTCONN PLUG MALE 19POS GOLD CRIMP-自由悬挂0 - 立即发货See Page for Pricing查看详情
CONN PLUG MALE 4POS GOLD CRIMPFGN.0M.304.XLCTCONN PLUG MALE 4POS GOLD CRIMP-自由悬挂192 - 立即发货
1 : ¥687.95
散装
查看详情
发布日期： 2012-06-29
