In-Position Technologies

Nova 2 6-Axis Robotic Arm

In-Position Technologies Nova 2 6-axis robotic arm has the capabilities of an industrial robot but at a lower cost

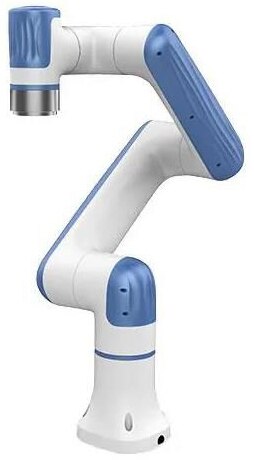

Image of In-Position Technologies Nova 2 Robotic ArmIn-Position Technologies Dobot Nova 2 is an industrial cost-effective robot for retail applications. The Nova 2 features a 2 kg (4.4 lb) payload, 625 mm reach (24.6 in), and 50 µm repeatability. It has the capabilities of an industrial robot but the lower cost necessitated by machine builders. Combined with ISO-certified collaborative functionality, the Nova 2 is especially perfect for applications with human interaction.

The Nova 2 is the perfect robotic arm for automated barista robots, lab testing machines, OEM manipulators in the semiconductor industry, camera manipulation machines, and basic pick-and-place applications across manufacturing. Its low weight, efficient power consumption, and DC input voltage make the Nova 2 a great fit for remote, battery-powered applications.

Features
  • Degree of freedom: 6
  • Payload: 2 kg (4.4 lbs)
  • Reach: 625 mm (24.6 in)
  • Repeatability: ±0.05 mm
  • Power: 100 VAC ~ 240 VAC, 50/60 Hz
  • Nominal voltage: 30 VDC ~ 60 VDC
  • Nominal power: 100 W
  • Communication interface: TCP/IP, Modbus TCP
  • Weight: 11 kg
  • 8x digital inputs (24 VDC PNP or NPN), 8x digital outputs (24 VDC PNP or NPN), 2x analog inputs (0 V to 10 V), and 2x analog outputs (0 V to 10 V)
  • Working environment: 0°C ~ 40°C
  • IP rating IP54
  • Software: DobotStudio Pro (free to download!)
  • US-based engineering support
    Grippers sold separately
Applications
  • Automated barista robots
  • Lab testing machines
  • OEM manipulators in the semiconductor industries
  • Camera manipulation machines
  • Basic pick-and-place applications
Parts are not available
