Amphenol Communications Solutions

FFC and FPC Connectors

Amphenol Communications Solutions offers an array of flat flex series connectors

Image of FCI's FFC and FPC Connectors Amphenol Communications Solutions' range of flex connectors feature the most innovative and complete range of products in the industry. They are ideal for applications in data communications equipment such as switches, routers, servers, and consumer electronics which includes mobile phones, wearable devices, and car multimedia applications.

Available in front flip, back flip, or slider configurations with low insertion force (LIF) or zero insertion force (ZIF) models, the connectors are available in heights of 5.30 mm down to 0.70 mm. It features top and bottom contact options, vertical, and right angle orientations, surface-mount and through-hole terminations. Contact pitches range from 2.54 mm down to 0.20 mm.

Flex connectors now provides an option of an FFC/FPC connector below 1 mm in height. These features combine to insure your application has the highest connection quality possible.

Amphenol Communications Solutions' flex connectors have an insulation resistance of 50 M and can withstand soldering temperatures up to 240°C. The housings are end-to-end stackable. Additional features include robust cable locking, passive latching, anti-reverse, and anti-mismatch. Halogen-free options are also available.

Applications
  • Mobile handsets
  • Car navigation systems/other CMD
  • Point of sale equipment (terminal and printer)
  • Test and measurement equipment
  • Medical equipment
  • Education and retail
  • DVD players/writers
  • Flat panel televisions
  • LCD/TFT
  • Set-top boxes
  • Handheld scanners
  • PDAs
  • MP3 players

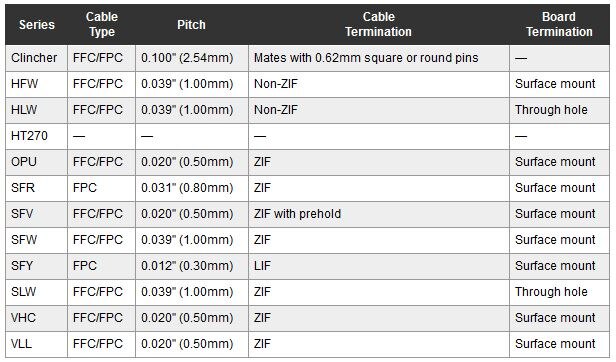

Image of Amphenol ICC FFC and FPC Connectors

Clincher Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC RCPT 4POS 2.54MM65801-004LFCONN FFC FPC RCPT 4POS 2.54MM5375 - 立即发货$9.92查看详情
CONN FFC FPC RCPT 8POS 2.54MM65801-008LFCONN FFC FPC RCPT 8POS 2.54MM680 - 立即发货$14.80查看详情

HFW Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC VERT 26POS 1MM SMDHFW26S-2STE1LFCONN FFC FPC VERT 26POS 1MM SMD0 - 立即发货See Page for Pricing查看详情
CONN FFC FPC VERT 32POS 1MM SMDHFW32S-2STE1LFCONN FFC FPC VERT 32POS 1MM SMD0 - 立即发货See Page for Pricing查看详情

HLW Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC TOP 4POS 1MM R/AHLW4R-2C7LFCONN FFC FPC TOP 4POS 1MM R/A2859 - 立即发货$1.54查看详情
CONN FFC FPC VERT 4POS 1MM PCBHLW4S-2C7LFCONN FFC FPC VERT 4POS 1MM PCB10251 - 立即发货$1.38查看详情

OPU Series

图片制造商零件编号描述可供货数量价格
CONN FPC TOP 40POS 0.5MM R/A62684-402100ALFCONN FPC TOP 40POS 0.5MM R/A9654 - 立即发货$5.45查看详情
CONN FPC BOTTOM 50POS 0.5MM R/A62684-501100ALFCONN FPC BOTTOM 50POS 0.5MM R/A10381 - 立即发货$8.46查看详情

SFV Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC VERT 8POS 0.5MM SMD62674-081121ALFCONN FFC FPC VERT 8POS 0.5MM SMD1 - 立即发货$4.88查看详情
CONN FFC VERT 12POS 0.5MM SMD62674-121121ALFCONN FFC VERT 12POS 0.5MM SMD1019 - 立即发货$5.62查看详情

SFW Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC VERT 4POS 1MM SMDSFW4S-2STE1LFCONN FFC FPC VERT 4POS 1MM SMD4461 - 立即发货$3.01查看详情
CONN FFC FPC VERT 4POS 1MM SMDSFW4S-2STME1LFCONN FFC FPC VERT 4POS 1MM SMD3901 - 立即发货$4.96查看详情

SLW Series

图片制造商零件编号描述可供货数量价格
CONN FFC FPC BOTTOM 4POS 1MM R/ASLW4R-1C7LFCONN FFC FPC BOTTOM 4POS 1MM R/A0 - 立即发货See Page for Pricing查看详情
CONN FFC FPC VERT 4POS 1MM PCBSLW4S-1C7LFCONN FFC FPC VERT 4POS 1MM PCB0 - 立即发货See Page for Pricing查看详情

VHC Series

图片制造商零件编号描述可供货数量价格
CONN FFC BOTTOM 60POS 0.5MM R/A10085901-6015ELFCONN FFC BOTTOM 60POS 0.5MM R/A3742 - 立即发货$7.48查看详情

VLL Series

图片制造商零件编号描述可供货数量价格
CONN FPC BOTTOM 12POS 0.5MM R/A10051922-1210ELFCONN FPC BOTTOM 12POS 0.5MM R/A0 - 立即发货$4.15查看详情
CONN FPC BOTTOM 14POS 0.5MM R/A10051922-1410ELFCONN FPC BOTTOM 14POS 0.5MM R/A5081 - 立即发货$5.85查看详情
CONN FPC BOTTOM 15POS 0.5MM R/A10051922-1510ELFCONN FPC BOTTOM 15POS 0.5MM R/A13355 - 立即发货$5.77查看详情
CONN FPC BOTTOM 24POS 0.5MM R/A10051922-2410ELFCONN FPC BOTTOM 24POS 0.5MM R/A9367 - 立即发货$5.91查看详情
CONN FPC BOTTOM 30POS 0.5MM R/A10051922-3010ELFCONN FPC BOTTOM 30POS 0.5MM R/A2223 - 立即发货$6.34查看详情
发布日期： 2009-07-09
