DRV2624EVM-MINI: LRA/ERM Haptic Driver, 2.7 ~ 5.5V in
Summary
The DRV2624 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects while optimizing power consumption.
The internal memory and loopable waveform sequencer, together with the automatic overdrive and braking simplifies the process of generating crisp and optimum haptic effects, reducing the burden imposedinto the processing unit.

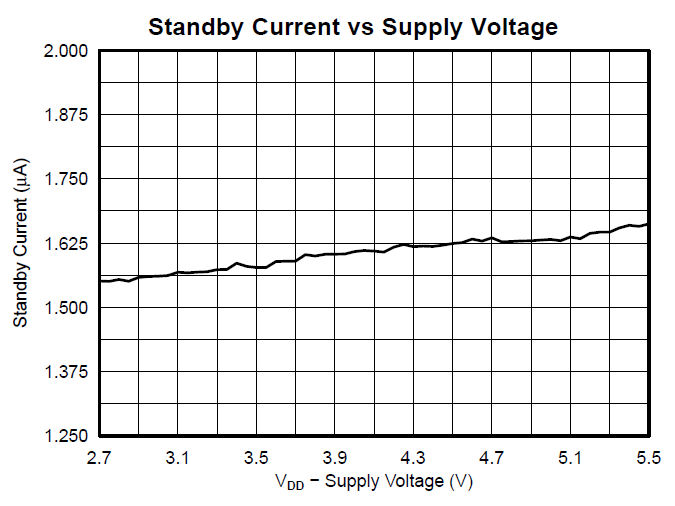

The DRV2624 device features an automatic go-to standby state and a battery preservation function to help reduce power consumption without user intervention. The NRST pin allows for a full shutdown state for additional power savings.
The waveform shape selection allows for sine-wave and square-wave drive to customize the haptic feel as well as the audible performance. Off-resonance driving with automatic braking simplifies the implementation of non-resonant haptic solutions.
Specifications
| Manufacturer | Texas Instruments |
|---|---|
| Category | Motor Control |
| Eval Board Part Number | 296-43813-ND |
| Eval Board Supplier | Texas Instruments |
| Eval Board |
Normally In Stock
|
| Voltage In |
2.7 ~ 5.5 V
|
| Number of Motors and Type |
1, Eccentric Rotating Mass (ERM)
1, Linear Resonant Actuator (LRA) |
| Power / Current Out |
-
|
| Features |
Auto Level Control

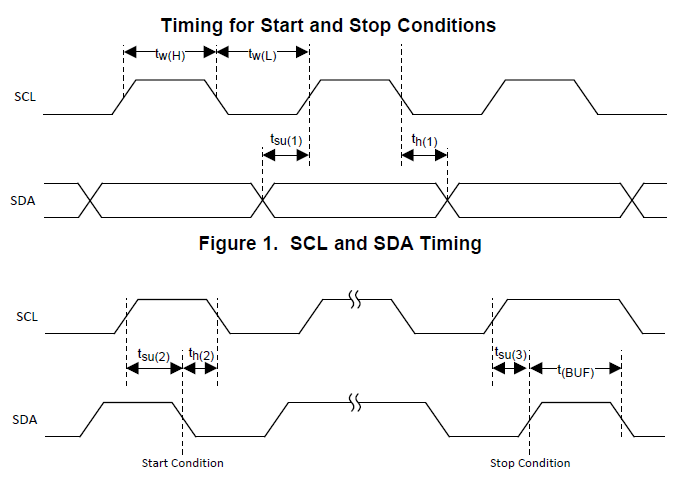

Brake Function I²C Interface Light Load Mode Shutdown, Enable, Standby |
| Component Count + Extras |
6 + 0
|
| Application / Target Market |
Cell Phones
Tablets |
| Design Author |
Texas Instruments
|
| Main I.C. Base Part |

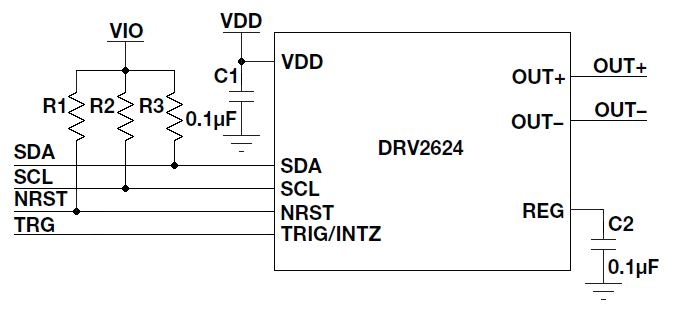

DRV2624
|
| Date Created By Author | 2014-09 |
| Date Added To Library | 2017-06 |
