© Freescale Semiconductor, Inc., 2003–2007. All rights reserved.
Freescale Semiconductor
Technical Data
This hardware specification contains detailed information on
power considerations, DC/AC electrical characteristics, and
AC timing specifications for the MPC875/MPC870. The
CPU on the MPC875/MPC870 is a 32-bit core built on
Power Architecture™ technology that incorporates memory
management units (MMUs) and instruction and data caches.
For functional characteristics of the MPC875/MPC870, refer
to the MPC885 PowerQUICC™ Family Reference Manual.
To locate published errata or updates for this document, refer
to the MPC875/MPC870 product summary page on our
website listed on the back cover of this document or, contact
your local Freescale sales office.
Document Number: MPC875EC
Rev. 4, 08/2007
Contents
1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
3. Maximum Tolerated Ratings . . . . . . . . . . . . . . . . . . . 9
4. Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . 10
5. Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6. DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7. Thermal Calculation and Measurement . . . . . . . . . . 12
8. Power Supply and Power Sequencing . . . . . . . . . . . 14
9. Mandatory Reset Configurations . . . . . . . . . . . . . . . 15
10. Layout Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11. Bus Signal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12. IEEE 1149.1 Electrical Specifications . . . . . . . . . . . 45
13. CPM Electrical Characteristics . . . . . . . . . . . . . . . . . 47
14. USB Electrical Characteristics . . . . . . . . . . . . . . . . . 67
15. FEC Electrical Characteristics . . . . . . . . . . . . . . . . . 67
16. Mechanical Data and Ordering Information . . . . . . . 71
17. Document Revision History . . . . . . . . . . . . . . . . . . . 80
MPC875/MPC870 PowerQUICC™
Hardware Specifications
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
2Freescale Semiconductor
Overview
1Overview
The MPC875/MPC870 is a versatile single-chip integrated microprocessor and peripheral combination
that can be used in a variety of controller applications and communications and networking systems. The
MPC875/MPC870 provides enhanced ATM functionality over that of other ATM-enabled members of the
MPC860 family.
Table 1 shows the functionality supported by the MPC875/MPC870.
2Features
The MPC875/MPC870 is comprised of three modules that each use the 32-bit internal bus: a MPC8xx
core, a system integration unit (SIU), and a communications processor module (CPM).
The following list summarizes the key MPC875/MPC870 features:
• Embedded MPC8xx core up to 133 MHz
• Maximum frequency operation of the external bus is 80 MHz (in 1:1 mode)
— The 133-MHz core frequency supports 2:1 mode only
— The 66-/80-MHz core frequencies support both the 1:1 and 2:1 modes
• Single-issue, 32-bit core (compatible with the Power Architecture definition) with thirty-two
32-bit general-purpose registers (GPRs)
— The core performs branch prediction with conditional prefetch and without conditional
execution
— 8-Kbyte data cache and 8-Kbyte instruction cache (see Table 1)
– Instruction cache is two-way, set-associative with 256 sets in 2 blocks
– Data cache is two-way, set-associative with 256 sets
– Cache coherency for both instruction and data caches is maintained on 128-bit (4-word)
cache blocks
– Caches are physically addressed, implement a least recently used (LRU) replacement
algorithm, and are lockable on a cache block basis
— MMUs with 32-entry TLB, fully associative instruction and data TLBs
— MMUs support multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address
spaces and 16 protection groups
— Advanced on-chip emulation debug mode
• Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits)
Table 1. MPC875/MPC870 Devices
Part Cache (Kbytes) Ethernet SCC SMC USB Security
Engine
I Cache D Cache 10BaseT 10/100
MPC875 8812111Yes
MPC870 8 8 — 2 — 1 1 No
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 3
Features
• Thirty-two address lines
• Memory controller (eight banks)
— Contains complete dynamic RAM (DRAM) controller
— Each bank can be a chip select or RAS to support a DRAM bank
— Up to 30 wait states programmable per memory bank
— Glueless interface to DRAM, SIMMS, SRAM, EPROMs, Flash EPROMs, and other memory
devices
— DRAM controller programmable to support most size and speed memory interfaces
— Four CAS lines, four WE lines, and one OE line
— Boot chip-select available at reset (options for 8-, 16-, or 32-bit memory)
— Variable block sizes (32 Kbytes–256 Mbytes)
— Selectable write protection
— On-chip bus arbitration logic
• General-purpose timers
— Four 16-bit timers or two 32-bit timers
— Gate mode can enable/disable counting
— Interrupt can be masked on reference match and event capture
• Two Fast Ethernet controllers (FEC)—Two 10/100 Mbps Ethernet/IEEE Std. 802.3® CDMA/CS
that interface through MII and/or RMII interfaces
• System integration unit (SIU)
— Bus monitor
— Software watchdog
— Periodic interrupt timer (PIT)
— Clock synthesizer
— Decrementer and time base
— Reset controller
— IEEE 1149.1™ Std. test access port (JTAG)
• Security engine is optimized to handle all the algorithms associated with IPsec, SSL/TLS, SRTP,
IEEE 802.11i® standard, and iSCSI processing. Available on the MPC875, the security engine
contains a crypto-channel, a controller, and a set of crypto hardware accelerators (CHAs). The
CHAs are:
— Data encryption standard execution unit (DEU)
– DES, 3DES
– Two key (K1, K2, K1) or three key (K1, K2, K3)
– ECB and CBC modes for both DES and 3DES
— Advanced encryption standard unit (AESU)
– Implements the Rijndael symmetric key cipher
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
4Freescale Semiconductor
Features
– ECB, CBC, and counter modes
– 128-, 192-, and 256-bit key lengths
— Message digest execution unit (MDEU)
– SHA with 160- or 256-bit message digest
– MD5 with 128-bit message digest
– HMAC with either algorithm
— Master/slave logic, with DMA
– 32-bit address/32-bit data
– Operation at MPC8xx bus frequency
— Crypto-channel supporting multi-command descriptors
– Integrated controller managing crypto-execution units
– Buffer size of 256 bytes for each execution unit, with flow control for large data sizes
• Interrupts
— Six external interrupt request (IRQ) lines
— Twelve port pins with interrupt capability
— Twenty-three internal interrupt sources
— Programmable priority between SCCs
— Programmable highest priority request
• Communications processor module (CPM)
— RISC controller
— Communication-specific commands (for example, GRACEFUL STOP TRANSMIT, ENTER HUNT
MODE, and RESTART TRANSMIT)
— Supports continuous mode transmission and reception on all serial channels
— 8-Kbytes of dual-port RAM
— Several serial DMA (SDMA) channels to support the CPM
— Three parallel I/O registers with open-drain capability
• On-chip 16 × 16 multiply accumulate controller (MAC)
— One operation per clock (two-clock latency, one-clock blockage)
— MAC operates concurrently with other instructions
— FIR loop—Four clocks per four multiplies
• Four baud-rate generators
— Independent (can be connected to SCC or SMC)
— Allows changes during operation
— Autobaud support option
• SCC (serial communication controller)
— Ethernet/IEEE 802.3® standard, supporting full 10-Mbps operation
— HDLC/SDLC
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 5
Features
— HDLC bus (implements an HDLC-based local area network (LAN))
— Asynchronous HDLC to support point-to-point protocol (PPP)
— AppleTalk
— Universal asynchronous receiver transmitter (UART)
— Synchronous UART
— Serial infrared (IrDA)
— Binary synchronous communication (BISYNC)
— Totally transparent (bit streams)
— Totally transparent (frame based with optional cyclic redundancy check (CRC))
• SMC (serial management channel)
— UART (low-speed operation)
— Transparent
• Universal serial bus (USB)—Supports operation as a USB function endpoint, a USB host
controller, or both for testing purposes (loopback diagnostics)
— USB 2.0 full-/low-speed compatible
— The USB function mode has the following features:
– Four independent endpoints support control, bulk, interrupt, and isochronous data transfers
– CRC16 generation and checking
– CRC5 checking
– NRZI encoding/decoding with bit stuffing
– 12- or 1.5-Mbps data rate
– Flexible data buffers with multiple buffers per frame
– Automatic retransmission upon transmit error
— The USB host controller has the following features:
– Supports control, bulk, interrupt, and isochronous data transfers
– CRC16 generation and checking
– NRZI encoding/decoding with bit stuffing
– Supports both 12- and 1.5-Mbps data rates (automatic generation of preamble token and
data rate configuration). Note that low-speed operation requires an external hub.
– Flexible data buffers with multiple buffers per frame
– Supports local loopback mode for diagnostics (12 Mbps only)
• Serial peripheral interface (SPI)
— Supports master and slave modes
— Supports multiple-master operation on the same bus
• Inter-integrated circuit (I2C) port
— Supports master and slave modes
— Supports a multiple-master environment
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
6Freescale Semiconductor
Features
• The MPC875 has a time-slot assigner (TSA) that supports one TDM bus (TDMb)
— Allows SCC and SMC to run in multiplexed and/or non-multiplexed operation
— Supports T1, CEPT, PCM highway, ISDN basic rate, ISDN primary rate, user-defined
— 1- or 8-bit resolution
— Allows independent transmit and receive routing, frame synchronization, and clocking
— Allows dynamic changes
— Can be internally connected to two serial channels (one SCC and one SMC)
• PCMCIA interface
— Master (socket) interface, release 2.1-compliant
— Supports one independent PCMCIA socket on the MPC875/MPC870
— Eight memory or I/O windows supported
• Debug interface
— Eight comparators: four operate on instruction address, two operate on data address, and two
operate on data
— Supports conditions: = ≠<>
— Each watchpoint can generate a break point internally
• Normal high and normal low power modes to conserve power
• 1.8-V core and 3.3-V I/O operation with 5-V TTL compatibility
• The MPC875/MPC870 comes in a 256-pin ball grid array (PBGA) package
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 7
Features
The MPC875 block diagram is shown in Figure 1.
Figure 1. MPC875 Block Diagram
Bus
System Interface Unit (SIU)
Embedded
Parallel I/O
Memory Controller
4
Timers Interrupt
Controllers 8-Kbyte
Dual-Port RAM
System Functions
8-Kbyte
Instruction Cache
32-Entry ITLB
Instruction MMU
8-Kbyte
Data Cache
32-Entry DTLB
Data MMU
Instruction
Bus
Load/Store
Bus
Unified
4 Baud Rate
Generators
Parallel Interface
Internal
Bus Interface
Unit
External
Bus Interface
Unit
Timers
32-Bit RISC Controller
and Program
ROM
Serial Interface
SPI
SMC1
MPC8xx
Processor
Core
SCC4
PCMCIA-ATA Interface
Virtual IDMA
and
Serial DMAs
Security Engine
AESU DEU MDEU
Controller
Channel
DMAs
DMAs
FIFOs
10/100
MIII/RMII
BaseT
Media Access
Control
Fast Ethernet
Controller
USB
Slave/Master IF
DMAs
I
2
C
Time-Slot Assigner
Port
Bus Interface
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
8Freescale Semiconductor
Features
The MPC870 block diagram is shown in Figure 2.
Figure 2. MPC870 Block Diagram
Bus
System Interface Unit (SIU)
Embedded
Parallel I/O
Memory Controller
4
Timers Interrupt
Controllers 8-Kbyte
Dual-Port RAM
System Functions
8-Kbyte
Instruction Cache
32-Entry ITLB
Instruction MMU
8-Kbyte
Data Cache
32-Entry DTLB
Data MMU
Instruction
Bus
Load/Store
Bus
Unified
4 Baud Rate
Generators
Parallel Interface
Internal
Bus Interface
Unit
External
Bus Interface
Unit
Timers
32-Bit RISC Controller
and Program
ROM
Serial Interface
SPISMC1
MPC8xx
Processor
Core
PCMCIA-ATA Interface
Virtual IDMA
and
Serial DMAs
DMAs
DMAs
FIFOs
10/100
MIII/RMII
BaseT
Media Access
Control
Fast Ethernet
Controller
USB
Slave/Master IF
DMAs
I
2
C
Port
Bus Interface
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 9
Maximum Tolerated Ratings
3 Maximum Tolerated Ratings
This section provides the maximum tolerated voltage and temperature ranges for the MPC875/MPC870.
Table 2 displays the maximum tolerated ratings and Table 3 displays the operating temperatures.
Figure 3 shows the undershoot and overshoot voltages at the interfaces of the MPC875/MPC870.
Figure 3. Undershoot/Overshoot Voltage for VDDH and VDDL
Table 2. Maximum Tolerated Ratings
Rating Symbol Value Unit
Supply voltage1
1The power supply of the device must start its ramp from 0.0 V.
VDDL (core voltage) –0.3 to 3.4 V
VDDH (I/O voltage) –0.3 to 4 V
VDDSYN –0.3 to 3.4 V
Difference between
VDDL and VDDSYN
<100 mV
Input voltage2
2Functional operating conditions are provided with the DC electrical specifications in Table 6. Absolute maximum ratings are
stress ratings only; functional operation at the maxima is not guaranteed. Stress beyond those listed may affect device
reliability or cause permanent damage to the device.
Caution: All inputs that tolerate 5 V cannot be more than 2.5 V greater than VDDH. This restriction applies to power up and
normal operation (that is, if the MPC875/MPC870 is unpowered, a voltage greater than 2.5 V must not be applied to its inputs).
Vin GND – 0.3 to VDDH V
Storage temperature range Tstg –55 to +150 °C
GND
GND – 0.3 V
GND – 0.7 V Not to Exceed 10%
VDDH/VDDL + 20%
VDDH/VDDL
VDDH/VDDL + 5%
of tinterface1
1. tinterface refers to the clock period associated with the bus clock interface.
VIH
VIL
Note:
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
10 Freescale Semiconductor
Thermal Characteristics
This device contains circuitry protecting against damage due to high-static voltage or electrical fields;
however, it is advised that normal precautions be taken to avoid application of any voltages higher than
maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused
inputs are tied to an appropriate logic voltage level (for example, either GND or VDDH).
4 Thermal Characteristics
Table 4 shows the thermal characteristics for the MPC875/MPC870.
Table 3. Operating Temperatures
Rating Symbol Value Unit
Temperature 1 (standard)
1Minimum temperatures are guaranteed as ambient temperature, TA. Maximum temperatures are guaranteed as junction
temperature, TJ.
TA(min) 0°C
TJ(max) 95 °C
Temperature (extended) TA(min) –40 °C
TJ(max) 100 °C
Table 4. MPC875/MPC870 Thermal Resistance Data
Rating Environment Symbol Value Unit
Junction-to-ambient1
1Junction temperature is a function of on-chip power dissipation, package thermal resistance, mounting site (board)
temperature, ambient temperature, airflow, power dissipation of other components on the board, and board thermal resistance.
Natural convection Single-layer board (1s) RθJA2
2Per SEMI G38-87 and JEDEC JESD51-2 with the single-layer board horizontal.
43 °C/W
Four-layer board (2s2p) RθJMA3
3Per JEDEC JESD51-6 with the board horizontal.
29
Airflow (200 ft/min) Single-layer board (1s) RθJMA336
Four-layer board (2s2p) RθJMA326
Junction-to-board4
4Thermal resistance between the die and the printed-circuit board per JEDEC JESD51-8. Board temperature is measured on
the top surface of the board near the package.
RθJB 20
Junction-to-case 5
5Indicates the average thermal resistance between the die and the case top surface as measured by the cold plate method (MIL
SPEC-883 Method 1012.1) with the cold plate temperature used for the case temperature. For exposed pad packages where
the pad would be expected to be soldered, junction-to-case thermal resistance is a simulated value from the junction to the
exposed pad without contact resistance.
RθJC 10
Junction-to-package top6
6Thermal characterization parameter indicating the temperature difference between the package top and the junction
temperature per JEDEC JESD51-2.
Natural convection ΨJT 2
Airflow (200 ft/min) ΨJT 2
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 11
Power Dissipation
5 Power Dissipation
Table 5 provides information on power dissipation. The modes are 1:1, where CPU and bus speeds are
equal, and 2:1, where CPU frequency is twice bus speed.
NOTE
The values in Table 5 represent VDDL-based power dissipation and do not
include I/O power dissipation over VDDH. I/O power dissipation varies
widely by application due to buffer current, depending on external circuitry.
The VDDSYN power dissipation is negligible.
6 DC Characteristics
Table 6 provides the DC electrical characteristics for the MPC875/MPC870.
Table 5. Power Dissipation (PD)
Die Revision Bus Mode Frequency Typical1
1Typical power dissipation is measured at VDDL = VDDSYN = 1.8 V, and VDDH is at 3.3 V.
Maximum2
2Maximum power dissipation at VDDL = VDDSYN = 1.9 V, and VDDH is at 3.5 V.
Unit
0 1:1 66 MHz 310 390 mW
80 MHz 350 430 mW
2:1 133 MHz 430 495 mW
Table 6. DC Electrical Specifications
Characteristic Symbol Min Max Unit
Operating voltage VDDH (I/O) 3.135 3.465 V
VDDL (core) 1.7 1.9 V
VDDSYN11.7 1.9 V
Difference
between VDDL
and VDDSYN
—100mV
Input high voltage (all inputs except EXTAL and EXTCLK)2VIH 2.0 3.465 V
Input low voltage3VIL GND 0.8 V
EXTAL, EXTCLK input high voltage VIHC 0.7 × VDDH VDDH V
Input leakage current, Vin = 5.5 V (except TMS, TRST, DSCK, and
DSDI pins) for 5-V tolerant pins1Iin — 100 µA
Input leakage current, Vin = VDDH (except TMS, TRST, DSCK, and
DSDI)
IIn —10µA
Input leakage current, Vin = 0 V (except TMS, TRST, DSCK, and DSDI
pins)
IIn —10µA
Input capacitance4Cin —20pF
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
12 Freescale Semiconductor
Thermal Calculation and Measurement
7 Thermal Calculation and Measurement
For the following discussions, PD = (VDDL × IDDL) + PI/O, where PI/O is the power dissipation of the I/O
drivers.
NOTE
The VDDSYN power dissipation is negligible.
7.1 Estimation with Junction-to-Ambient Thermal Resistance
An estimation of the chip junction temperature, TJ, in °C can be obtained from the following equation:
TJ = TA + (RθJA × PD)
where:
TA = ambient temperature (°C)
RθJA = package junction-to-ambient thermal resistance (°C/W)
PD = power dissipation in package
The junction-to-ambient thermal resistance is an industry standard value that provides a quick and easy
estimation of thermal performance. However, the answer is only an estimate; test cases have demonstrated
that errors of a factor of two (in the quantity TJ – TA) are possible.
Output high voltage, IOH = –2.0 mA, VDDH = 3.0 V (except XTAL and
open-drain pins) VOH 2.4 — V
Output low voltage
IOL = 2.0 mA (CLKOUT)
IOL = 3.2 mA5
IOL = 5.3 mA6
IOL = 7.0 mA (TXD1/PA14, TXD2/PA12)
IOL = 8.9 mA (TS, TA, TEA, BI, BB, HRESET, SRESET)
VOL —0.5V
1The difference between VDDL and VDDSYN cannot be more than 100 mV.
2The signals PA[0:15], PB[14:31], PC[4:15], PD[3:15], PE(14:31), TDI, TDO, TCK, TRST, TMS, MII1_TXEN, and MII_MDIO are
5-V tolerant. The minimum voltage is still 2.0 V.
3VIL(max) for the I2C interface is 0.8 V rather than the 1.5 V as specified in the I2C standard.
4Input capacitance is periodically sampled.
5A(0:31), TSIZ0/REG, TSIZ1, D(0:31), IRQ(2:4), IRQ6, RD/WR, BURST, IP_B(0:1), PA(0:4), PA(6:7), PA(10:11), PA15, PB19,
PB(23:31), PC(6:7), PC(10:13), PC15, PD8, PE(14:31), MII1_CRS, MII_MDIO, MII1_TXEN, and MII1_COL.
6BDIP/GPL_B(5), BR, BG, FRZ/IRQ6, CS(0:7), WE(0:3), BS_A(0:3), GPL_A0/GPL_B0, OE/GPL_A1/GPL_B1,
GPL_A(2:3)/GPL_B(2:3)/CS(2:3), UPWAITA/GPL_A4, UPWAITB/GPL_B4, GPL_A5, ALE_A, CE1_A, CE2_A, OP(0:3), and
BADDR(28:30).
Table 6. DC Electrical Specifications (continued)
Characteristic Symbol Min Max Unit
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 13
Thermal Calculation and Measurement
7.2 Estimation with Junction-to-Case Thermal Resistance
Historically, thermal resistance has frequently been expressed as the sum of a junction-to-case thermal
resistance and a case-to-ambient thermal resistance:
RθJA = RθJC + RθCA
where:
RθJA = junction-to-ambient thermal resistance (°C/W)
RθJC = junction-to-case thermal resistance (°C/W)
RθCA = case-to-ambient thermal resistance (°C/W)
RθJC is device-related and cannot be influenced by the user. The user adjusts the thermal environment to
affect the case-to-ambient thermal resistance, RθCA. For instance, the user can change the airflow around
the device, add a heat sink, change the mounting arrangement on the printed-circuit board, or change the
thermal dissipation on the printed-circuit board surrounding the device. This thermal model is most useful
for ceramic packages with heat sinks where some 90% of the heat flows through the case and the heat sink
to the ambient environment. For most packages, a better model is required.
7.3 Estimation with Junction-to-Board Thermal Resistance
A simple package thermal model that has demonstrated reasonable accuracy (about 20%) is a two-resistor
model consisting of a junction-to-board and a junction-to-case thermal resistance. The junction-to-case
thermal resistance covers the situation where a heat sink is used or where a substantial amount of heat is
dissipated from the top of the package. The junction-to-board thermal resistance describes the thermal
performance when most of the heat is conducted to the printed-circuit board. It has been observed that the
thermal performance of most plastic packages and especially PBGA packages is strongly dependent on the
board temperature. If the board temperature is known, an estimate of the junction temperature in the
environment can be made using the following equation:
TJ = TB + (RθJB ×PD)
where:
RθJB = junction-to-board thermal resistance (°C/W)
TB = board temperature (°C)
PD = power dissipation in package
If the board temperature is known and the heat loss from the package case to the air can be ignored,
acceptable predictions of junction temperature can be made. For this method to work, the board and board
mounting must be similar to the test board used to determine the junction-to-board thermal resistance,
namely a 2s2p (board with a power and a ground plane) and vias attaching the thermal balls to the ground
plane.
7.4 Estimation Using Simulation
When the board temperature is not known, a thermal simulation of the application is needed. The simple
two-resistor model can be used with the thermal simulation of the application [2], or a more accurate and
complex model of the package can be used in the thermal simulation.
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
14 Freescale Semiconductor
Power Supply and Power Sequencing
7.5 Experimental Determination
To determine the junction temperature of the device in the application after prototypes are available, the
thermal characterization parameter (ΨJT) can be used to determine the junction temperature with a
measurement of the temperature at the top center of the package case using the following equation:
TJ = TT + (ΨJT ×PD)
where:
ΨJT = thermal characterization parameter
TT = thermocouple temperature on top of package
PD = power dissipation in package
The thermal characterization parameter is measured per the JESD51-2 specification published by JEDEC
using a 40 gauge type T thermocouple epoxied to the top center of the package case. The thermocouple
should be positioned so that the thermocouple junction rests on the package. A small amount of epoxy is
placed over the thermocouple junction and over about 1 mm of wire extending from the junction. The
thermocouple wire is placed flat against the package case to avoid measurement errors caused by the
cooling effects of the thermocouple wire.
7.6 References
Semiconductor Equipment and Materials International (415) 964-5111
805 East Middlefield Rd
Mountain View, CA 94043
MIL-SPEC and EIA/JESD (JEDEC) specifications 800-854-7179 or
(Available from Global Engineering Documents) 303-397-7956
JEDEC Specifications http://www.jedec.org
1. C.E. Triplett and B. Joiner, “An Experimental Characterization of a 272 PBGA Within an
Automotive Engine Controller Module,” Proceedings of SemiTherm, San Diego, 1998, pp. 47–54.
2. 2. B. Joiner and V. Adams, “Measurement and Simulation of Junction to Board Thermal
Resistance and Its Application in Thermal Modeling,” Proceedings of SemiTherm, San Diego,
1999, pp. 212–220.
8 Power Supply and Power Sequencing
This section provides design considerations for the MPC875/MPC870 power supply. The
MPC875/MPC870 has a core voltage (VDDL) and PLL voltage (VDDSYN), which both operate at a lower
voltage than the I/O voltage (VDDH). The I/O section of the MPC875/MPC870 is supplied with 3.3 V
across VDDH and VSS (GND).
The signals PA[0:3], PA[8:11], PB15, PB[24:25], PB[28:31], PC[4:7], PC[12:13], PC15, PD[3:15], TDI,
TDO, TCK, TRST, TMS, MII_TXEN, and MII_MDIO are 5 V tolerant. No input can be more than 2.5 V
greater than VDDH. In addition, 5-V tolerant pins cannot exceed 5.5 V, and remaining input pins cannot
exceed 3.465 V. This restriction applies to power up, power down, and normal operation.
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 15
Mandatory Reset Configurations
One consequence of multiple power supplies is that when power is initially applied, the voltage rails ramp
up at different rates. The rates depend on the nature of the power supply, the type of load on each power
supply, and the manner in which different voltages are derived. The following restrictions apply:
•V
DDL must not exceed VDDH during power up and power down
•V
DDL must not exceed 1.9 V, and VDDH must not exceed 3.465 V
These cautions are necessary for the long-term reliability of the part. If they are violated, the electrostatic
discharge (ESD) protection diodes are forward-biased, and excessive current can flow through these
diodes. If the system power supply design does not control the voltage sequencing, the circuit shown in
Figure 4 can be added to meet these requirements. The MUR420 Schottky diodes control the maximum
potential difference between the external bus and core power supplies on power up, and the 1N5820 diodes
regulate the maximum potential difference on power down.
Figure 4. Example Voltage Sequencing Circuit
9 Mandatory Reset Configurations
The MPC875/MPC870 requires a mandatory configuration during reset.
If hardware reset configuration word (HRCW) is enabled, the HRCW[DBGC] value needs to be set to
binary X1 in the HRCW and the SIUMCR[DBGC] should be programmed with the same value in the boot
code after reset. This can be done by asserting the RSTCONF during HRESET assertion.
If HRCW is disabled, the SIUMCR[DBGC] should be programmed with binary X1 in the boot code after
reset by negating the RSTCONF during the HRESET assertion.
The MBMR[GPLB4DIS], PAPAR, PADIR, PBPAR, PBDIR, PCPAR, and PCDIR need to be configured
with the mandatory values in Table 7 in the boot code after the reset is negated.
Table 7. Mandatory Reset Configuration of MPC875/MPC870
Register/Configuration Field Value
(Binary)
HRCW (Hardware reset configuration word) HRCW[DBGC] X1
SIUMCR (SIU module configuration register) SIUMCR[DBGC] X1
MBMR (Machine B mode register) MBMR[GPLB4DIS} 0
PAPAR (Port A pin assignment register) PAPAR[5:9]
PAPAR[12:13]
0
VDDH VDDL
1N5820
MUR420
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
16 Freescale Semiconductor
Layout Practices
10 Layout Practices
Each VDD pin on the MPC875/MPC870 should be provided with a low-impedance path to the board’s
supply. Each GND pin should likewise be provided with a low-impedance path to ground. The power
supply pins drive distinct groups of logic on chip. The VDD power supply should be bypassed to ground
using at least four 0.1-µF bypass capacitors located as close as possible to the four sides of the package.
Each board designed should be characterized and additional appropriate decoupling capacitors should be
used if required. The capacitor leads and associated printed-circuit traces connecting to chip VDD and
GND should be kept to less than half an inch per capacitor lead. At a minimum, a four-layer board
employing two inner layers as VDD and GND planes should be used.
All output pins on the MPC875/MPC870 have fast rise and fall times. Printed circuit (PC) trace
interconnection length should be minimized in order to minimize undershoot and reflections caused by
these fast output switching times. This recommendation particularly applies to the address and data buses.
Maximum PC trace lengths of 6 inches are recommended. Capacitance calculations should consider all
device loads as well as parasitic capacitances due to the PC traces. Attention to proper PCB layout and
bypassing becomes especially critical in systems with higher capacitive loads because these loads create
higher transient currents in the VDD and GND circuits. Pull up all unused inputs or signals that will be
inputs during reset. Special care should be taken to minimize the noise levels on the PLL supply pins. For
more information, refer to Section 14.4.3, “Clock Synthesizer Power (VDDSYN, VSSSYN, VSSSYN1),” in
the MPC885 PowerQUICC™ Family Reference Manual.
PADIR (Port A data direction register) PADIR[5:9]
PADIR[12:13]
0
PBPAR (Port B pin assignment register) PBPAR[14:18]
PBPAR[20:22]
0
PBDIR (Port B data direction register) PBDIR[14:8]
PBDIR[20:22]
0
PCPAR (Port C pin assignment register) PCPAR[4:5]
PCPAR[8:9]
PCPAR[14]
0
PCDIR (Port C data direction register) PCDIR[4:5]
PCDIR[8:9]
PCDIR[14]
0
PDPAR (Port D pin assignment register) PDPAR[3:7]
PDPAR[9:5]
0
PDDIR (Port D data direction register) PDDIR[3:7]
PDDIR[9:15]
0
Table 7. Mandatory Reset Configuration of MPC875/MPC870 (continued)
Register/Configuration Field Value
(Binary)
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 17
Bus Signal Timing
11 Bus Signal Timing
The maximum bus speed supported by the MPC875/MPC870 is 80 MHz. Higher-speed parts must be
operated in half-speed bus mode (for example, an MPC875/MPC870 used at 133 MHz must be configured
for a 66 MHz bus). Table 8 shows the frequency ranges for standard part frequencies in 1:1 bus mode, and
Table 9 shows the frequency ranges for standard part frequencies in 2:1 bus mode.
Table 10 provides the bus operation timing for the MPC875/MPC870 at 33, 40, 66, and 80 MHz.
The timing for the MPC875/MPC870 bus shown Table 10, assumes a 50-pF load for maximum delays and
a 0-pF load for minimum delays. CLKOUT assumes a 100-pF load maximum delay
Table 8. Frequency Ranges for Standard Part Frequencies (1:1 Bus Mode)
Part Frequency 66 MHz 80 MHz
Min Max Min Max
Core frequency 40 66.67 40 80
Bus frequency 40 66.67 40 80
Table 9. Frequency Ranges for Standard Part Frequencies (2:1 Bus Mode)
Part Frequency 66 MHz 80 MHz 133 MHz
Min Max Min Max Min Max
Core frequency 40 66.67 40 80 40 133
Bus frequency 20 33.33 20 40 20 66
Table 10. Bus Operation Timings
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
B1 Bus period (CLKOUT), see Ta ble 8 ————————ns
B1a EXTCLK to CLKOUT phase skew—If
CLKOUT is an integer multiple of EXTCLK,
then the rising edge of EXTCLK is aligned with
the rising edge of CLKOUT. For a non-integer
multiple of EXTCLK, this synchronization is
lost, and the rising edges of EXTCLK and
CLKOUT have a continuously varying phase
skew.
–2 +2 –2 +2 –2 +2 –2 +2 ns
B1b CLKOUT frequency jitter peak-to-peak — 1 — 1 — 1 — 1 ns
B1c Frequency jitter on EXTCLK — 0.50 — 0.50 — 0.50 — 0.50 %
B1d CLKOUT phase jitter peak-to-peak for
OSCLK ≥ 15 MHz
—4—4—4—4ns
CLKOUT phase jitter peak-to-peak for
OSCLK < 15 MHz
—5—5—5—5ns
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
18 Freescale Semiconductor
Bus Signal Timing
B2 CLKOUT pulse width low (MIN = 0.4 ×B1,
MAX = 0.6 ×B1)
12.1 18.2 10.0 15.0 6.1 9.1 5.0 7.5 ns
B3 CLKOUT pulse width high (MIN = 0.4 ×B1,
MAX = 0.6 ×B1)
12.1 18.2 10.0 15.0 6.1 9.1 5.0 7.5 ns
B4 CLKOUT rise time — 4.00 — 4.00 — 4.00 — 4.00 ns
B5 CLKOUT fall time — 4.00 — 4.00 — 4.00 — 4.00 ns
B7 CLKOUT to A(0:31), BADDR(28:30), RD/WR,
BURST, D(0:31) output hold (MIN = 0.25 ×B1)
7.60 — 6.30 — 3.80 — 3.13 — ns
B7a CLKOUT to TSIZ(0:1), REG, RSV, BDIP, PTR
output hold (MIN = 0.25 ×B1)
7.60 — 6.30 — 3.80 — 3.13 — ns
B7b CLKOUT to BR, BG, FRZ, VFLS(0:1), VF(0:2)
IWP(0:2), LWP(0:1), STS output hold
(MIN = 0.25 ×B1)
7.60 — 6.30 — 3.80 — 3.13 — ns
B8 CLKOUT to A(0:31), BADDR(28:30), RD/WR,
BURST, D(0:31) valid (MAX = 0.25 ×B1 + 6.3)
— 13.80 — 12.50 — 10.00 — 9.43 ns
B8a CLKOUT to TSIZ(0:1), REG, RSV, BDIP, PTR
valid (MAX = 0.25 ×B1 + 6.3)
— 13.80 — 12.50 — 10.00 — 9.43 ns
B8b CLKOUT to BR, BG, VFLS(0:1), VF(0:2),
IWP(0:2), FRZ, LWP(0:1), STS valid 2
(MAX = 0.25 ×B1 + 6.3)
— 13.80 — 12.50 — 10.00 — 9.43 ns
B9 CLKOUT to A(0:31), BADDR(28:30), RD/WR,
BURST, D(0:31), TSIZ(0:1), REG, RSV, PTR
High-Z (MAX = 0.25 ×B1 + 6.3)
7.60 13.80 6.30 12.50 3.80 10.00 3.13 9.43 ns
B11 CLKOUT to TS, BB assertion
(MAX = 0.25 ×B1 + 6.0)
7.60 13.60 6.30 12.30 3.80 9.80 3.13 9.13 ns
B11a CLKOUT to TA, BI assertion (when driven by
the memory controller or PCMCIA interface)
(MAX = 0.00 ×B1 + 9.301)
2.50 9.30 2.50 9.30 2.50 9.80 2.5 9.3 ns
B12 CLKOUT to TS, BB negation
(MAX = 0.25 ×B1 + 4.8)
7.60 12.30 6.30 11.00 3.80 8.50 3.13 7.92 ns
B12a CLKOUT to TA, BI negation (when driven by
the memory controller or PCMCIA interface)
(MAX = 0.00 ×B1 + 9.00)
2.50 9.00 2.50 9.00 2.50 9.00 2.5 9.00 ns
B13 CLKOUT to TS, BB High-Z (MIN = 0.25 ×B1) 7.60 21.60 6.30 20.30 3.80 14.00 3.13 12.93 ns
B13a CLKOUT to TA, BI High-Z (when driven by the
memory controller or PCMCIA interface)
(MIN = 0.00 ×B1 + 2.5)
2.50 15.00 2.50 15.00 2.50 15.00 2.5 15.00 ns
B14 CLKOUT to TEA assertion
(MAX = 0.00 ×B1 + 9.00)
2.50 9.00 2.50 9.00 2.50 9.00 2.50 9.00 ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 19
Bus Signal Timing
B15 CLKOUT to TEA High-Z
(MIN = 0.00 ×B1 + 2.50)
2.50 15.00 2.50 15.00 2.50 15.00 2.50 15.00 ns
B16 TA, BI valid to CLKOUT (setup time)
(MIN = 0.00 ×B1 + 6.00)
6.00 — 6.00 — 6.00 — 6 — ns
B16a TEA, KR, RETRY, CR valid to CLKOUT (setup
time) (MIN = 0.00 ×B1 + 4.5)
4.50 — 4.50 — 4.50 — 4.50 — ns
B16b BB, BG, BR, valid to CLKOUT (setup time)2
(4MIN = 0.00 ×B1 + 0.00)
4.00 — 4.00 — 4.00 — 4.00 — ns
B17 CLKOUT to TA, TEA, BI, BB, BG, BR valid
(hold time) (MIN = 0.00 ×B1 + 1.003)1.00 — 1.00 — 2.00 — 2.00 — ns
B17a CLKOUT to KR, RETRY, CR valid (hold time)
(MIN = 0.00 ×B1 + 2.00)
2.00 — 2.00 — 2.00 — 2.00 — ns
B18 D(0:31) valid to CLKOUT rising edge (setup
time)4 (MIN = 0.00 ×B1 + 6.00)
6.00 — 6.00 — 6.00 — 6.00 — ns
B19 CLKOUT rising edge to D(0:31) valid (hold
time)4 (MIN = 0.00 ×B1 + 1.005)
1.00 — 1.00 — 2.00 — 2.00 — ns
B20 D(0:31) valid to CLKOUT falling edge (setup
time)6 (MIN = 0.00 ×B1 + 4.00)
4.00 — 4.00 — 4.00 — 4.00 — ns
B21 CLKOUT falling edge to D(0:31) valid (hold
time)6 (MIN = 0.00 ×B1 + 2.00)
2.00 — 2.00 — 2.00 — 2.00 — ns
B22 CLKOUT rising edge to CS asserted GPCM
ACS = 00 (MAX = 0.25 ×B1 + 6.3)
7.60 13.80 6.30 12.50 3.80 10.00 3.13 9.43 ns
B22a CLKOUT falling edge to CS asserted GPCM
ACS = 10, TRLX = 0 (MAX = 0.00 ×B1 + 8.00) — 8.00 — 8.00 — 8.00 — 8.00 ns
B22b CLKOUT falling edge to CS asserted GPCM
ACS = 11, TRLX = 0, EBDF = 0
(MAX = 0.25 ×B1 + 6.3)
7.60 13.80 6.30 12.50 3.80 10.00 3.13 9.43 ns
B22c CLKOUT falling edge to CS asserted GPCM
ACS = 11, TRLX = 0, EBDF = 1
(MAX = 0.375 ×B1 + 6.6)
10.90 18.00 10.90 16.00 5.20 12.30 4.69 10.93 ns
B23 CLKOUT rising edge to CS negated GPCM
read access, GPCM write access ACS = 00,
TRLX = 0 and CSNT = 0
(MAX = 0.00 ×B1 + 8.00)
2.00 8.00 2.00 8.00 2.00 8.00 2.00 8.00 ns
B24 A(0:31) and BADDR(28:30) to CS asserted
GPCM ACS = 10, TRLX = 0
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B24a A(0:31) and BADDR(28:30) to CS asserted
GPCM ACS = 11, TRLX = 0
(MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
20 Freescale Semiconductor
Bus Signal Timing
B25 CLKOUT rising edge to OE,
WE(0:3)/BS_B[0:3] asserted
(MAX = 0.00 ×B1 + 9.00)
— 9.00 9.00 9.00 — 9.00 ns
B26 CLKOUT rising edge to OE negated
(MAX = 0.00 ×B1 + 9.00)
2.00 9.00 2.00 9.00 2.00 9.00 2.00 9.00 ns
B27 A(0:31) and BADDR(28:30) to CS asserted
GPCM ACS = 10, TRLX = 1
(MIN = 1.25 ×B1 – 2.00)
35.90 — 29.30 — 16.90 — 13.60 — ns
B27a A(0:31) and BADDR(28:30) to CS asserted
GPCM ACS = 11, TRLX = 1
(MIN = 1.50 ×B1 – 2.00)
43.50 — 35.50 — 20.70 — 16.75 — ns
B28 CLKOUT rising edge to WE(0:3)/BS_B[0:3]
negated GPCM write access CSNT = 0
(MAX = 0.00 ×B1 + 9.00)
— 9.00 — 9.00 — 9.00 — 9.00 ns
B28a CLKOUT falling edge to WE(0:3)/BS_B[0:3]
negated GPCM write access TRLX = 0,
CSNT = 1, EBDF = 0
(MAX = 0.25 ×B1 + 6.80)
7.60 14.30 6.30 13.00 3.80 10.50 3.13 9.93 ns
B28b CLKOUT falling edge to CS negated GPCM
write access TRLX = 0, CSNT = 1 ACS = 10 or
ACS = 11, EBDF = 0
(MAX = 0.25 ×B1 + 6.80)
— 14.30 — 13.00 — 10.50 — 9.93 ns
B28c CLKOUT falling edge to WE(0:3)/BS_B[0:3]
negated GPCM write access TRLX = 0,
CSNT = 1 write access TRLX = 0, CSNT = 1,
EBDF = 1 (MAX = 0.375 ×B1 + 6.6)
10.90 18.00 10.90 18.00 5.20 12.30 4.69 11.29 ns
B28d CLKOUT falling edge to CS negated GPCM
write access TRLX = 0, CSNT = 1, ACS = 10
or ACS = 11, EBDF = 1
(MAX = 0.375 ×B1 + 6.6)
— 18.00 — 18.00 — 12.30 — 11.30 ns
B29 WE(0:3)/BS_B[0:3] negated to D(0:31) High-Z
GPCM write access, CSNT = 0, EBDF = 0
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B29a WE(0:3)/BS_B[0:3] negated to D(0:31) High-Z
GPCM write access, TRLX = 0, CSNT = 1,
EBDF = 0 (MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
B29b CS negated to D(0:31) High-Z GPCM write
access, ACS = 00, TRLX = 0 and CSNT = 0
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B29c CS negated to D(0:31) High-Z GPCM write
access, TRLX = 0, CSNT = 1, ACS = 10 or
ACS = 11, EBDF = 0 (MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 21
Bus Signal Timing
B29d WE(0:3)/BS_B[0:3] negated to D(0:31) High-Z
GPCM write access, TRLX = 1, CSNT = 1,
EBDF = 0 (MIN = 1.50 ×B1 – 2.00)
43.50 — 35.50 — 20.70 — 16.75 — ns
B29e CS negated to D(0:31) High-Z GPCM write
access, TRLX = 1, CSNT = 1, ACS = 10 or
ACS = 11, EBDF = 0 (MIN = 1.50 ×B1 – 2.00)
43.50 — 35.50 — 20.70 — 16.75 — ns
B29f WE(0:3/BS_B[0:3]) negated to D(0:31) High-Z
GPCM write access, TRLX = 0, CSNT = 1,
EBDF = 1 (MIN = 0.375 ×B1–6.30)
7
5.00 — 3.00 — 0.00 — 0.00 — ns
B29g CS negated to D(0:31) High-Z GPCM write
access, TRLX = 0, CSNT = 1 ACS = 10 or
ACS = 11, EBDF = 1
(MIN = 0.375 ×B1 – 6.30)7
5.00 — 3.00 — 0.00 — 0.00 — ns
B29h WE(0:3)/BS_B[0:3] negated to D(0:31) High-Z
GPCM write access, TRLX = 1, CSNT = 1,
EBDF = 1 (MIN = 0.375 ×B1–3.30)
38.40 — 31.10 — 17.50 — 13.85 — ns
B29i CS negated to D(0:31) (0:3) High-Z GPCM
write access, TRLX = 1, CSNT = 1, ACS = 10
or ACS = 11, EBDF = 1
(MIN = 0.375 ×B1 – 3.30)
38.40 — 31.10 — 17.50 — 13.85 — ns
B30 CS, WE(0:3)/BS_B[0:3] negated to A(0:31),
BADDR(28:30) invalid GPCM write access8
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B30a WE(0:3)/BS_B[0:3] negated to A(0:31),
BADDR(28:30) invalid GPCM, write access,
TRLX = 0, CSNT = 1, CS negated to A(0:31),
invalid GPCM write access TRLX = 0,
CSNT = 1, ACS = 10 or ACS == 11, EBDF = 0
(MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
B30b WE(0:3)/BS_B[0:3] negated to A(0:31), invalid
GPCM BADDR(28:30), invalid GPCM write
access, TRLX = 1, CSNT = 1. CS negated to
A(0:31), invalid GPCM write access TRLX = 1,
CSNT = 1, ACS = 10 or ACS == 11, EBDF = 0
(MIN = 1.50 ×B1 – 2.00)
43.50 — 35.50 — 20.70 — 16.75 — ns
B30c WE(0:3)/BS_B[0:3] negated to A(0:31),
BADDR(28:30) invalid GPCM write access,
TRLX = 0, CSNT = 1. CS negated to A(0:31)
invalid GPCM write access, TRLX = 0,
CSNT = 1 ACS = 10 or ACS == 11, EBDF = 1
(MIN = 0.375 ×B1 – 3.00)
8.40 — 6.40 — 2.70 — 1.70 — ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
22 Freescale Semiconductor
Bus Signal Timing
B30d WE(0:3)/BS_B[0:3] negated to A(0:31),
BADDR(28:30) invalid GPCM write access
TRLX = 1, CSNT =1, CS negated to A(0:31)
invalid GPCM write access TRLX = 1,
CSNT = 1, ACS = 10 or 11, EBDF = 1
38.67 — 31.38 — 17.83 — 14.19 — ns
B31 CLKOUT falling edge to CS valid as requested
by control bit CST4 in the corresponding word
in the UPM (MAX = 0.00 ×B1 + 6.00)
1.50 6.00 1.50 6.00 1.50 6.00 1.50 6.00 ns
B31a CLKOUT falling edge to CS valid as requested
by control bit CST1 in the corresponding word
in the UPM (MAX = 0.25 ×B1 + 6.80)
7.60 14.30 6.30 13.00 3.80 10.50 3.13 10.00 ns
B31b CLKOUT rising edge to CS valid, as requested
by control bit CST2 in the corresponding word
in the UPM (MAX = 0.00 ×B1 + 8.00)
1.50 8.00 1.50 8.00 1.50 8.00 1.50 8.00 ns
B31c CLKOUT rising edge to CS valid, as requested
by control bit CST3 in the corresponding word
in the UPM (MAX = 0.25 ×B1 + 6.30)
7.60 13.80 6.30 12.50 3.80 10.00 3.13 9.40 ns
B31d CLKOUT falling edge to CS valid as requested
by control bit CST1 in the corresponding word
in the UPM EBDF = 1
(MAX = 0.375 ×B1 + 6.6)
13.30 18.00 11.30 16.00 7.60 12.30 4.69 11.30 ns
B32 CLKOUT falling edge to BS valid as requested
by control bit BST4 in the corresponding word
in the UPM (MAX = 0.00 ×B1 + 6.00)
1.50 6.00 1.50 6.00 1.50 6.00 1.50 6.00 ns
B32a CLKOUT falling edge to BS valid as requested
by control bit BST1 in the corresponding word
in the UPM, EBDF = 0
(MAX = 0.25 ×B1 + 6.80)
7.60 14.30 6.30 13.00 3.80 10.50 3.13 10.00 ns
B32b CLKOUT rising edge to BS valid, as requested
by control bit BST2 in the corresponding word
in the UPM (MAX = 0.00 ×B1 + 8.00)
1.50 8.00 1.50 8.00 1.50 8.00 1.50 8.00 ns
B32c CLKOUT rising edge to BS valid, as requested
by control bit BST3 in the corresponding word
in the UPM (MAX = 0.25 ×B1 + 6.80)
7.60 14.30 6.30 13.00 3.80 10.50 3.13 10.00 ns
B32d CLKOUT falling edge to BS valid as requested
by control bit BST1 in the corresponding word
in the UPM, EBDF = 1
(MAX = 0.375 ×B1 + 6.60)
13.30 18.00 11.30 16.00 7.60 12.30 4.49 11.30 ns
B33 CLKOUT falling edge to GPL valid as
requested by control bit GxT4 in the
corresponding word in the UPM
(MAX = 0.00 ×B1 + 6.00)
1.50 6.00 1.50 6.00 1.50 6.00 1.50 6.00 ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 23
Bus Signal Timing
B33a CLKOUT rising edge to GPL valid as
requested by control bit GxT3 in the
corresponding word in the UPM
(MAX = 0.25 ×B1 + 6.80)
7.60 14.30 6.30 13.00 3.80 10.50 3.13 10.00 ns
B34 A(0:31), BADDR(28:30), and D(0:31) to CS
valid, as requested by control bit CST4 in the
corresponding word in the UPM
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B34a A(0:31), BADDR(28:30), and D(0:31) to CS
valid, as requested by control bit CST1 in the
corresponding word in the UPM
(MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
B34b A(0:31), BADDR(28:30), and D(0:31) to CS
valid, as requested by CST2 in the
corresponding word in UPM
(MIN = 0.75 ×B1 – 2.00)
20.70 — 16.70 — 9.40 — 6.80 — ns
B35 A(0:31), BADDR(28:30) to CS valid as
requested by control bit BST4 in the
corresponding word in the UPM
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B35a A(0:31), BADDR(28:30), and D(0:31) to BS
valid as requested by BST1 in the
corresponding word in the UPM
(MIN = 0.50 ×B1 – 2.00)
13.20 — 10.50 — 5.60 — 4.25 — ns
B35b A(0:31), BADDR(28:30), and D(0:31) to BS
valid as requested by control bit BST2 in the
corresponding word in the UPM
(MIN = 0.75 ×B1 – 2.00)
20.70 — 16.70 — 9.40 — 7.40 — ns
B36 A(0:31), BADDR(28:30), and D(0:31) to GPL
valid as requested by control bit GxT4 in the
corresponding word in the UPM
(MIN = 0.25 ×B1 – 2.00)
5.60 — 4.30 — 1.80 — 1.13 — ns
B37 UPWAIT valid to CLKOUT falling edge9
(MIN = 0.00 ×B1 + 6.00)
6.00 — 6.00 — 6.00 — 6.00 — ns
B38 CLKOUT falling edge to UPWAIT valid9
(MIN = 0.00 ×B1 + 1.00)
1.00 — 1.00 — 1.00 — 1.00 — ns
B39 AS valid to CLKOUT rising edge10
(MIN = 0.00 ×B1 + 7.00)
7.00 — 7.00 — 7.00 — 7.00 — ns
B40 A(0:31), TSIZ(0:1), RD/WR, BURST valid to
CLKOUT rising edge
(MIN = 0.00 ×B1 + 7.00)
7.00 — 7.00 — 7.00 — 7.00 — ns
B41 TS valid to CLKOUT rising edge (setup time)
(MIN = 0.00 ×B1 + 7.00) 7.00 — 7.00 — 7.00 — 7.00 — ns
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
24 Freescale Semiconductor
Bus Signal Timing
B42 CLKOUT rising edge to TS valid (hold time)
(MIN = 0.00 ×B1 + 2.00)
2.00 — 2.00 — 2.00 — 2.00 — ns
B43 AS negation to memory controller signals
negation (MAX = TBD)
— TBD — TBD — TBD — TBD ns
1For part speeds above 50 MHz, use 9.80 ns for B11a.
2The timing required for BR input is relevant when the MPC875/MPC870 is selected to work with the internal bus arbiter. The
timing for BG input is relevant when the MPC875/MPC870 is selected to work with the external bus arbiter.
3For part speeds above 50 MHz, use 2 ns for B17.
4The D(0:31) input timings B18 and B19 refer to the rising edge of the CLKOUT in which the TA input signal is asserted.
5For part speeds above 50 MHz, use 2 ns for B19.
6The D(0:31) input timings B20 and B21 refer to the falling edge of the CLKOUT. This timing is valid only for read accesses
controlled by chip-selects under control of the user-programmable machine (UPM) in the memory controller, for data beats
where DLT3 = 1 in the RAM words. (This is only the case where data is latched on the falling edge of CLKOUT.)
7This formula applies to bus operation up to 50 MHz.
8The timing B30 refers to CS when ACS = 00 and to WE(0:3) when CSNT = 0.
9The signal UPWAIT is considered asynchronous to the CLKOUT and synchronized internally. The timings specified in B37 and
B38 are specified to enable the freeze of the UPM output signals as described in Figure 20.
10 The AS signal is considered asynchronous to the CLKOUT. The timing B39 is specified in order to allow the behavior specified
in Figure 23.
Table 10. Bus Operation Timings (continued)
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 25
Bus Signal Timing
Figure 5 provides the control timing diagram.
.
Figure 5. Control Timing
Figure 6 provides the timing for the external clock.
Figure 6. External Clock Timing
CLKOUT
Outputs
A
B
Outputs
B
A
Inputs
D
C
Inputs
C
D
A Maximum output delay specification.
B Minimum output hold time.
C Minimum input setup time specification.
D Minimum input hold time specification.
CLKOUT
B1
B5
B3
B4
B1
B2
/\
/\
\,,
/\
"—ri—
/\
\j
4/
\
KI"
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
26 Freescale Semiconductor
Bus Signal Timing
Figure 7 provides the timing for the synchronous output signals.
Figure 7. Synchronous Output Signals Timing
Figure 8 provides the timing for the synchronous active pull-up and open-drain output signals.
Figure 8. Synchronous Active Pull-Up Resistor and Open-Drain Outputs Signals Timing
CLKOUT
Output
Signals
Output
Signals
Output
Signals
B8
B7 B9
B8a
B9B7a
B8b
B7b
CLKOUT
TS, BB
TA, BI
TEA
B13
B12B11
B11 B12a
B13a
B15
B14
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 27
Bus Signal Timing
Figure 9 provides the timing for the synchronous input signals.
Figure 9. Synchronous Input Signals Timing
Figure 10 provides normal case timing for input data. It also applies to normal read accesses under the
control of the user-programmable machine (UPM) in the memory controller.
Figure 10. Input Data Timing in Normal Case
CLKOUT
TA , BI
TEA, KR,
RETRY, CR
BB, BG, BR
B16
B17
B16a
B17a
B16b
B17
CLKOUT
TA
D[0:31]
B16
B17
B19
B18
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
28 Freescale Semiconductor
Bus Signal Timing
Figure 11 provides the timing for the input data controlled by the UPM for data beats where DLT3 = 1 in
the UPM RAM words. (This is only the case where data is latched on the falling edge of CLKOUT.)
Figure 11. Input Data Timing when Controlled by UPM in the Memory Controller and DLT3 = 1
Figure 12 through Figure 15 provide the timing for the external bus read controlled by various GPCM
factors.
Figure 12. External Bus Read Timing (GPCM Controlled—ACS = 00)
CLKOUT
TA
D[0:31]
B20
B21
CLKOUT
A[0:31]
CSx
OE
WE[0:3]
TS
D[0:31]
B11 B12
B23
B8
B22
B26
B19
B18
B25
B28
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 29
Bus Signal Timing
Figure 13. External Bus Read Timing (GPCM Controlled—TRLX = 0, ACS = 10)
Figure 14. External Bus Read Timing (GPCM Controlled—TRLX = 0, ACS = 11)
CLKOUT
A[0:31]
CSx
OE
TS
D[0:31]
B11 B12
B8
B22a B23
B26
B19B18
B25B24
CLKOUT
A[0:31]
CSx
OE
TS
D[0:31]
B11 B12
B22b
B8
B22c B23
B24a B25 B26
B19B18
/\
\7/
/\
,
\
A
X5
\
K
\
/\
\
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
30 Freescale Semiconductor
Bus Signal Timing
Figure 15. External Bus Read Timing (GPCM Controlled—TRLX = 1, ACS = 10, ACS = 11)
CLKOUT
A[0:31]
CSx
OE
TS
D[0:31]
B11 B12
B8
B22a
B27
B27a
B22b B22c B19B18
B26
B23
_/‘—\_/‘—\_/‘—\_
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 31
Bus Signal Timing
Figure 16 through Figure 18 provide the timing for the external bus write controlled by various GPCM
factors.
Figure 16. External Bus Write Timing (GPCM Controlled—TRLX = 0, CSNT = 0)
CLKOUT
A[0:31]
CSx
WE[0:3]
OE
TS
D[0:31]
B11
B8
B22 B23
B12
B30
B28B25
B26
B8 B9
B29
B29b
_/l—\_ x_/‘—\_
{7 «0*
{j ‘ CO
*C QC 0
i 21 ,fl
«()1 C 0
’ W ‘ CO
, /V\
—I F\ \A'” F\
K/H ‘kf'
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
32 Freescale Semiconductor
Bus Signal Timing
Figure 17. External Bus Write Timing (GPCM Controlled—TRLX = 0, CSNT = 1)
B23
B30a B30c
CLKOUT
A[0:31]
CSx
OE
WE[0:3]
TS
D[0:31]
B11
B8
B22
B12
B28b B28d
B25
B26
B8
B28a
B9
B28c
B29c B29g
B29a B29f
\[Xfl/
hi
, + /
, //, < j="" 7="" w="" v,="" )="" x="" x="" c="" ,,="" r="" n="" j,="" q="" c="" c="" \a="" ,\="" kk="" ,="">< \x="" 3="" ‘l="" f="" \r,="" 3="" ,="" ,="" fax="" \="" j="" \="" ,="">MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 33
Bus Signal Timing
Figure 18. External Bus Write Timing (GPCM Controlled—TRLX = 1, CSNT = 1)
B23B22
B8
B12B11
CLKOUT
A[0:31]
CSx
WE[0:3]
TS
OE
D[0:31]
B30dB30b
B28b B28d
B25 B29e B29i
B26 B29d B29h
B28a B28c B9B8
B29b
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
34 Freescale Semiconductor
Bus Signal Timing
Figure 19 provides the timing for the external bus controlled by the UPM.
Figure 19. External Bus Timing (UPM Controlled Signals)
CLKOUT
CSx
B31d
B8
B31
B34
B32b
GPL_A[0:5],
GPL_B[0:5]
BS_A[0:3]
A[0:31]
B31c
B31b
B34a
B32
B32a B32d
B34b
B36
B35b
B35a
B35
B33
B32c
B33a
B31a
CH
33H
XXXXX
XXXXX
X X X
XXX
XXX
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 35
Bus Signal Timing
Figure 20 provides the timing for the asynchronous asserted UPWAIT signal controlled by the UPM.
Figure 20. Asynchronous UPWAIT Asserted Detection in UPM Handled Cycles Timing
Figure 21 provides the timing for the asynchronous negated UPWAIT signal controlled by the UPM.
Figure 21. Asynchronous UPWAIT Negated Detection in UPM Handled Cycles Timing
CLKOUT
CSx
UPWAIT
GPL_A[0:5],
GPL_B[0:5]
BS_A[0:3]
B37
B38
CLKOUT
CSx
UPWAIT
GPL_A[0:5],
GPL_B[0:5]
BS_A[0:3]
B37
B38
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
36 Freescale Semiconductor
Bus Signal Timing

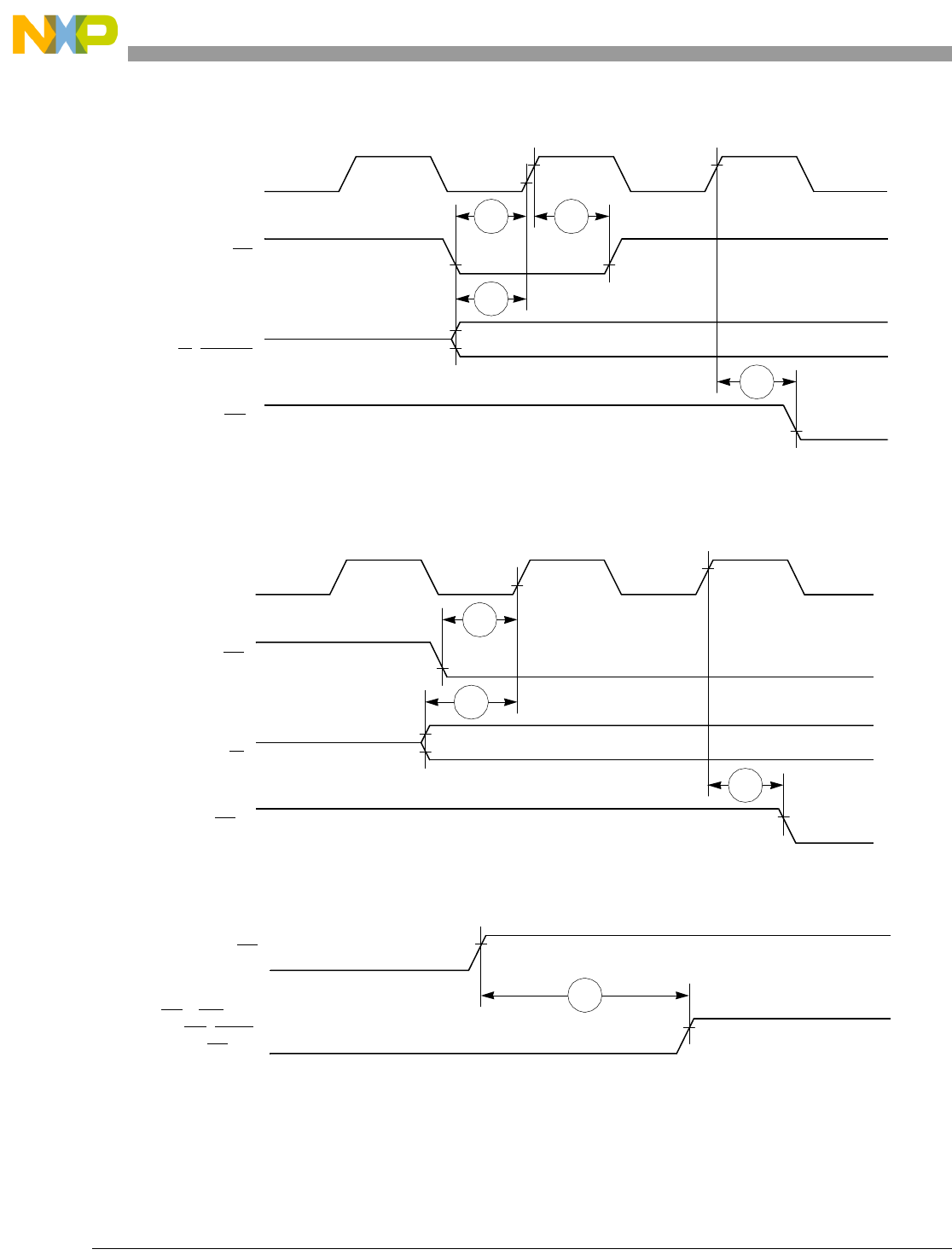

Figure 22 provides the timing for the synchronous external master access controlled by the GPCM.
Figure 22. Synchronous External Master Access Timing (GPCM Handled ACS = 00)
Figure 23 provides the timing for the asynchronous external master memory access controlled by the
GPCM.
Figure 23. Asynchronous External Master Memory Access Timing (GPCM Controlled—ACS = 00)
Figure 24 provides the timing for the asynchronous external master control signals negation.
Figure 24. Asynchronous External Master—Control Signals Negation Timing
CLKOUT
TS
A[0:31],
TSIZ[0:1],
R/W, BURST
CSx
B41 B42
B40
B22
CLKOUT
AS
A[0:31],
TSIZ[0:1],
R/W
CSx
B39
B40
B22
AS
CSx, WE[0:3],
OE, GPLx,
BS[0:3]
B43
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 37
Bus Signal Timing
Table 11 provides the interrupt timing for the MPC875/MPC870.
Figure 25 provides the interrupt detection timing for the external level-sensitive lines.
Figure 25. Interrupt Detection Timing for External Level Sensitive Lines
Figure 26 provides the interrupt detection timing for the external edge-sensitive lines.
Figure 26. Interrupt Detection Timing for External Edge-Sensitive Lines
Table 11. Interrupt Timing
Num Characteristic1
1The I39 and I40 timings describe the testing conditions under which the IRQ lines are tested when being defined as level
sensitive. The IRQ lines are synchronized internally and do not have to be asserted or negated with reference to the CLKOUT.
The I41, I42, and I43 timings are specified to allow correct functioning of the IRQ lines detection circuitry and have no direct
relation with the total system interrupt latency that the MPC875/MPC870 is able to support.
All Frequencies Unit
Min Max
I39 IRQx valid to CLKOUT rising edge (setup time) 6.00 ns
I40 IRQx hold time after CLKOUT 2.00 ns
I41 IRQx pulse width low 3.00 ns
I42 IRQx pulse width high 3.00 ns
I43 IRQx edge-to-edge time 4 ×TCLOCKOUT —
CLKOUT
IRQx
I39
I40
CLKOUT
IRQx
I41 I42
I43
I43
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
38 Freescale Semiconductor
Bus Signal Timing
Table 12 shows the PCMCIA timing for the MPC875/MPC870.
Table 12. PCMCIA Timing
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
P44 A(0:31), REG valid to PCMCIA strobe
asserted1 (MIN = 0.75 ×B1 – 2.00)
1PSST = 1. Otherwise add PSST times cycle time.
PSHT = 0. Otherwise add PSHT times cycle time.
These synchronous timings define when the WAITA signals are detected in order to freeze (or relieve) the PCMCIA current
cycle. The WAITA assertion will be effective only if it is detected 2 cycles before the PSL timer expiration. See Chapter 16,
“PCMCIA Interface,” in the
MPC885 PowerQUICC™ Family Reference Manual
.
20.70 — 16.70 — 9.40 — 7.40 — ns
P45 A(0:31), REG valid to ALE negation1
(MIN = 1.00 ×B1 – 2.00)
28.30 — 23.00 — 13.20 — 10.50 — ns
P46 CLKOUT to REG valid
(MAX = 0.25 ×B1 + 8.00)
7.60 15.60 6.30 14.30 3.80 11.80 3.13 11.13 ns
P47 CLKOUT to REG invalid
(MIN = 0.25 ×B1 + 1.00)
8.60 — 7.30 — 4.80 — 4.125 — ns
P48 CLKOUT to CE1, CE2 asserted
(MAX = 0.25 ×B1 + 8.00)
7.60 15.60 6.30 14.30 3.80 11.80 3.13 11.13 ns
P49 CLKOUT to CE1, CE2 negated
(MAX = 0.25 ×B1 + 8.00)
7.60 15.60 6.30 14.30 3.80 11.80 3.13 11.13 ns
P50 CLKOUT to PCOE, IORD, PCWE, IOWR
assert time (MAX = 0.00 ×B1 + 11.00) — 11.00 — 11.00 — 11.00 — 11.00 ns
P51 CLKOUT to PCOE, IORD, PCWE, IOWR
negate time (MAX = 0.00 ×B1 + 11.00)
2.00 11.00 2.00 11.00 2.00 11.00 2.00 11.00 ns
P52 CLKOUT to ALE assert time
(MAX = 0.25 ×B1 + 6.30)
7.60 13.80 6.30 12.50 3.80 10.00 3.13 9.40 ns
P53 CLKOUT to ALE negate time
(MAX = 0.25 ×B1 + 8.00)
— 15.60 — 14.30 — 11.80 — 11.13 ns
P54 PCWE, IOWR negated to D(0:31)
invalid1 (MIN = 0.25 ×B1–2.00)
5.60 — 4.30 — 1.80 — 1.125 — ns
P55 WAITA and WAITB valid to CLKOUT
rising edge1 (MIN = 0.00 ×B1 + 8.00)
8.00 — 8.00 — 8.00 — 8.00 — ns
P56 CLKOUT rising edge to WAITA and
WAITB invalid1 (MIN = 0.00 ×B1 + 2.00)
2.00 — 2.00 — 2.00 — 2.00 — ns
ma
W
Xmfimfli
z rfl 4 e
I f» N?
, \ 4 4
fl fifi +4
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 39
Bus Signal Timing
Figure 27 provides the PCMCIA access cycle timing for the external bus read.
Figure 27. PCMCIA Access Cycles Timing External Bus Read
CLKOUT
A[0:31]
REG
CE1/CE2
PCOE, IORD
TS
D[0:31]
ALE
B19B18
P53P52 P52
P51P50
P48 P49
P46 P45
P44
P47
my
midfimfifi
m f 3 my, @fima
I Li? mm m,
# 7
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
40 Freescale Semiconductor
Bus Signal Timing
Figure 28 provides the PCMCIA access cycle timing for the external bus write.
Figure 28. PCMCIA Access Cycles Timing External Bus Write
Figure 29 provides the PCMCIA WAIT signals detection timing.
Figure 29. PCMCIA WAIT Signals Detection Timing
CLKOUT
A[0:31]
REG
CE1/CE2
PCWE, IOWR
TS
D[0:31]
ALE
B9B8
P53P52 P52
P51P50
P48 P49
P46 P45
P44
P47
P54
CLKOUT
WAITA
P55
P56
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 41
Bus Signal Timing
Table 13 shows the PCMCIA port timing for the MPC875/MPC870.
Figure 30 provides the PCMCIA output port timing for the MPC875/MPC870.
Figure 30. PCMCIA Output Port Timing
Figure 31 provides the PCMCIA input port timing for the MPC875/MPC870.
Figure 31. PCMCIA Input Port Timing
Table 13. PCMCIA Port Timing
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
P57 CLKOUT to OPx valid
(MAX = 0.00 ×B1 + 19.00) — 19.00 — 19.00 — 19.00 — 19.00 ns
P58 HRESET negated to OPx drive1
(MIN = 0.75 ×B1 + 3.00)
1OP2 and OP3 only.
25.70 — 21.70 — 14.40 — 12.40 — ns
P59 IP_Xx valid to CLKOUT rising edge
(MIN = 0.00 ×B1 + 5.00)
5.00 — 5.00 — 5.00 — 5.00 — ns
P60 CLKOUT rising edge to IP_Xx invalid
(MIN = 0.00 ×B1 + 1.00)
1.00 — 1.00 — 1.00 — 1.00 — ns
CLKOUT
HRESET
Output
Signals
OP2, OP3
P57
P58
CLKOUT
Input
Signals
P59
P60
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
42 Freescale Semiconductor
Bus Signal Timing
Table 14 shows the debug port timing for the MPC875/MPC870.
Figure 32 provides the input timing for the debug port clock.
Figure 32. Debug Port Clock Input Timing
Figure 33 provides the timing for the debug port.
Figure 33. Debug Port Timings
Table 14. Debug Port Timing
Num Characteristic All Frequencies Unit
Min Max
D61 DSCK cycle time 3 ×TCLOCKOUT —
D62 DSCK clock pulse width 1.25 ×TCLOCKOUT —
D63 DSCK rise and fall times 0.00 3.00 ns
D64 DSDI input data setup time 8.00 ns
D65 DSDI data hold time 5.00 ns
D66 DSCK low to DSDO data valid 0.00 15.00 ns
D67 DSCK low to DSDO invalid 0.00 2.00 ns
DSCK
D61
D61
D63
D62
D62
D63
DSCK
DSDI
DSDO
D64
D65
D66
D67
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 43
Bus Signal Timing
Table 15 shows the reset timing for the MPC875/MPC870.
Table 15. Reset Timing
Num Characteristic 33 MHz 40 MHz 66 MHz 80 MHz Unit
Min Max Min Max Min Max Min Max
R69 CLKOUT to HRESET high impedance
(MAX = 0.00 ×B1 + 20.00) — 20.00 — 20.00 — 20.00 — 20.00 ns
R70 CLKOUT to SRESET high impedance
(MAX = 0.00 ×B1 + 20.00)
— 20.00 — 20.00 — 20.00 — 20.00 ns
R71 RSTCONF pulse width
(MIN = 17.00 ×B1)
515.20 — 425.00 — 257.60 — 212.50 — ns
R72 — —————————
R73
Configuration data to HRESET rising
edge setup time
(MIN = 15.00 ×B1 + 50.00)
504.50 — 425.00 — 277.30 — 237.50 — ns
R74
Configuration data to RSTCONF rising
edge setup time
(MIN = 0.00 ×B1 + 350.00)
350.00 — 350.00 — 350.00 — 350.00 — ns
R75
Configuration data hold time after
RSTCONF negation
(MIN = 0.00 ×B1 + 0.00)
0.00 — 0.00 — 0.00 — 0.00 — ns
R76
Configuration data hold time after
HRESET negation
(MIN = 0.00 ×B1 + 0.00)
0.00 — 0.00 — 0.00 — 0.00 — ns
R77
HRESET and RSTCONF asserted to
data out drive
(MAX = 0.00 ×B1 + 25.00)
— 25.00 — 25.00 — 25.00 — 25.00 ns
R78 RSTCONF negated to data out high
impedance (MAX = 0.00 ×B1 + 25.00) — 25.00 — 25.00 — 25.00 — 25.00 ns
R79
CLKOUT of last rising edge before chip
three-states HRESET to data out high
impedance (MAX = 0.00 ×B1 + 25.00)
— 25.00 — 25.00 — 25.00 — 25.00 ns
R80 DSDI, DSCK setup (MIN = 3.00 ×B1) 90.90 — 75.00 — 45.50 — 37.50 — ns
R81 DSDI, DSCK hold time
(MIN = 0.00 ×B1 + 0.00)
0.00 — 0.00 — 0.00 — 0.00 — ns
R82
SRESET negated to CLKOUT rising
edge for DSDI and DSCK sample
(MIN = 8.00 ×B1)
242.40 — 200.00 — 121.20 — 100.00 — ns
<5>MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
44 Freescale Semiconductor
Bus Signal Timing
Figure 34 shows the reset timing for the data bus configuration.
Figure 34. Reset Timing—Configuration from Data Bus
Figure 35 provides the reset timing for the data bus weak drive during configuration.
Figure 35. Reset Timing—Data Bus Weak Drive During Configuration
Figure 36 provides the reset timing for the debug port configuration.
Figure 36. Reset Timing—Debug Port Configuration
HRESET
RSTCONF
D[0:31] (IN)
R71
R74
R73
R75
R76
CLKOUT
HRESET
D[0:31] (OUT)
(Weak)
RSTCONF
R69
R79
R77 R78
CLKOUT
SRESET
DSCK, DSDI
R70
R82
R80R80
R81 R81
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 45
IEEE 1149.1 Electrical Specifications
12 IEEE 1149.1 Electrical Specifications
Table 16 provides the JTAG timings for the MPC875/MPC870 shown in Figure 37 through Figure 40.
Figure 37. JTAG Test Clock Input Timing
Table 16. JTAG Timing
Num Characteristic All Frequencies Unit
Min Max
J82 TCK cycle time 100.00 — ns
J83 TCK clock pulse width measured at 1.5 V 40.00 — ns
J84 TCK rise and fall times 0.00 10.00 ns
J85 TMS, TDI data setup time 5.00 — ns
J86 TMS, TDI data hold time 25.00 — ns
J87 TCK low to TDO data valid — 27.00 ns
J88 TCK low to TDO data invalid 0.00 — ns
J89 TCK low to TDO high impedance — 20.00 ns
J90 TRST assert time 100.00 — ns
J91 TRST setup time to TCK low 40.00 — ns
J92 TCK falling edge to output valid — 50.00 ns
J93 TCK falling edge to output valid out of high impedance — 50.00 ns
J94 TCK falling edge to output high impedance — 50.00 ns
J95 Boundary scan input valid to TCK rising edge 50.00 — ns
J96 TCK rising edge to boundary scan input invalid 50.00 — ns
TCK
J82 J83
J82 J83
J84 J84
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
46 Freescale Semiconductor
IEEE 1149.1 Electrical Specifications
Figure 38. JTAG Test Access Port Timing Diagram
Figure 39. JTAG TRST Timing Diagram
Figure 40. Boundary Scan (JTAG) Timing Diagram
TCK
TMS, TDI
TDO
J85
J86
J87
J88 J89
TCK
TRST
J91
J90
TCK
Output
Signals
Output
Signals
Output
Signals
J92 J94
J93
J95 J96
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 47
CPM Electrical Characteristics
13 CPM Electrical Characteristics
This section provides the AC and DC electrical specifications for the communications processor module
(CPM) of the MPC875/MPC870.
13.1 Port C Interrupt AC Electrical Specifications
Table 17 provides the timings for Port C interrupts.
Figure 41 shows the Port C interrupt detection timing.
Figure 41. Port C Interrupt Detection Timing
13.2 IDMA Controller AC Electrical Specifications
Table 18 provides the IDMA controller timings as shown in Figure 42 through Figure 45.
Table 17. Port C Interrupt Timing
Num Characteristic 33.34 MHz Unit
Min Max
35 Port C interrupt pulse width low (edge-triggered mode) 55 — ns
36 Port C interrupt minimum time between active edges 55 — ns
Table 18. IDMA Controller Timing
Num Characteristic All Frequencies Unit
Min Max
40 DREQ setup time to clock high 7 — ns
41 DREQ hold time from clock high1
1Applies to high-to-low mode (EDM = 1).
TBD — ns
42 SDACK assertion delay from clock high — 12 ns
43 SDACK negation delay from clock low — 12 ns
44 SDACK negation delay from TA low — 20 ns
45 SDACK negation delay from clock high — 15 ns
46 TA assertion to rising edge of the clock setup time (applies to external TA)7—ns
Port C
35
36
(Input)
\f» +
KW
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
48 Freescale Semiconductor
CPM Electrical Characteristics
Figure 42. IDMA External Requests Timing Diagram
Figure 43. SDACK Timing Diagram—Peripheral Write, Externally-Generated TA
41
40
DREQ
(Input)
CLKO
(Output)
DATA
42
46
43
CLKO
(Output)
TS
(Output)
R/W
(Output)
SDACK
TA
(Input)
/
\
Q»
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 49
CPM Electrical Characteristics

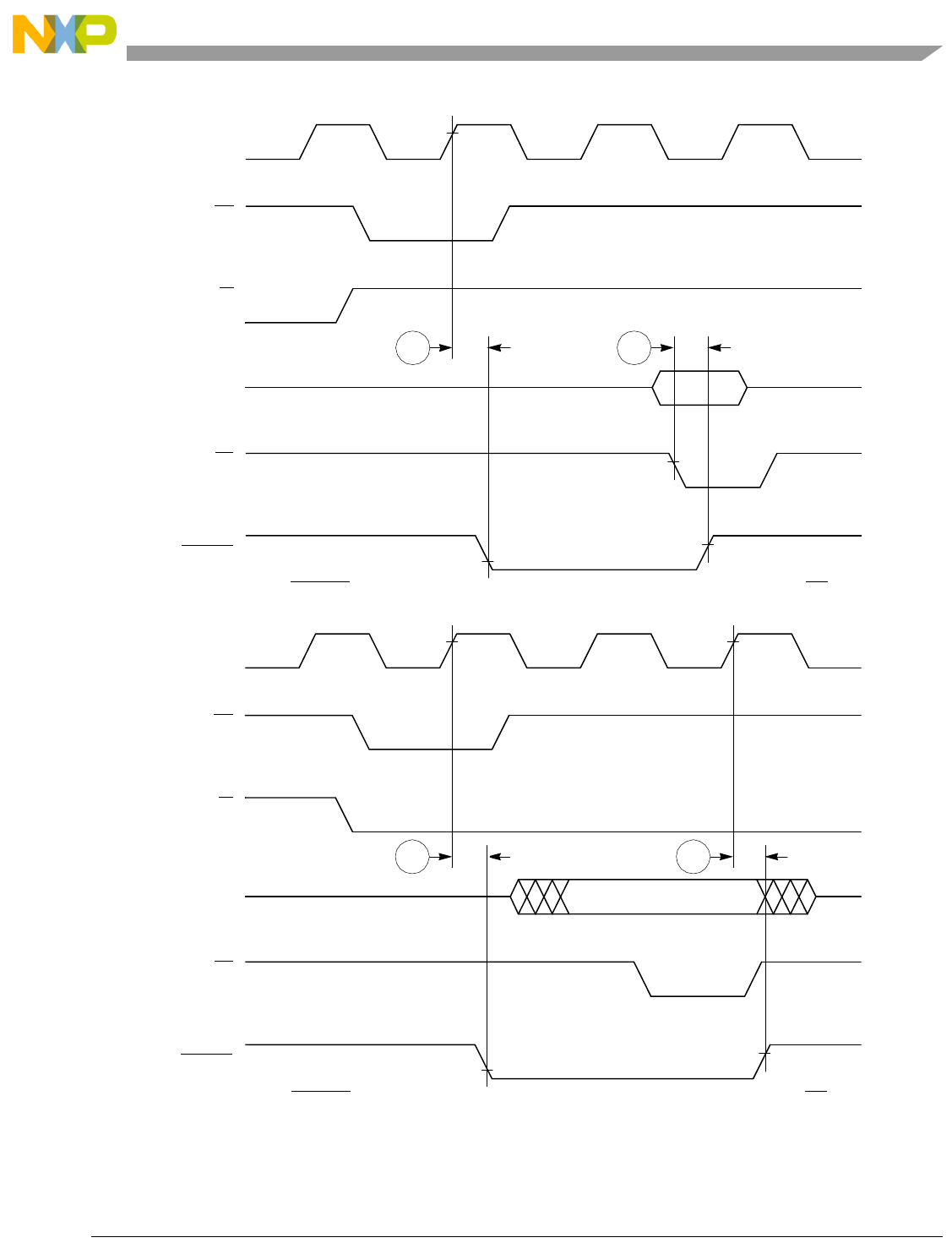

Figure 44. SDACK Timing Diagram—Peripheral Write, Internally-Generated TA
Figure 45. SDACK Timing Diagram—Peripheral Read, Internally-Generated TA
DATA
42 44
CLKO
(Output)
TS
(Output)
R/W
(Output)
TA
(Output)
SDACK
DATA
42 45
CLKO
(Output)
TS
(Output)
R/W
(Output)
TA
(Output)
SDACK
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
50 Freescale Semiconductor
CPM Electrical Characteristics
13.3 Baud Rate Generator AC Electrical Specifications
Table 19 provides the baud rate generator timings as shown in Figure 46.
Figure 46. Baud Rate Generator Timing Diagram
13.4 Timer AC Electrical Specifications
Table 20 provides the general-purpose timer timings as shown in Figure 47.
Table 19. Baud Rate Generator Timing
Num Characteristic All Frequencies Unit
Min Max
50 BRGO rise and fall time — 10 ns
51 BRGO duty cycle 40 60 %
52 BRGO cycle 40 — ns
Table 20. Timer Timing
Num Characteristic All Frequencies Unit
Min Max
61 TIN/TGATE rise and fall time 10 — ns
62 TIN/TGATE low time 1 — clk
63 TIN/TGATE high time 2 — clk
64 TIN/TGATE cycle time 3 — clk
65 CLKO low to TOUT valid 3 25 ns
52
50
51
BRGOX
50
51
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 51
CPM Electrical Characteristics

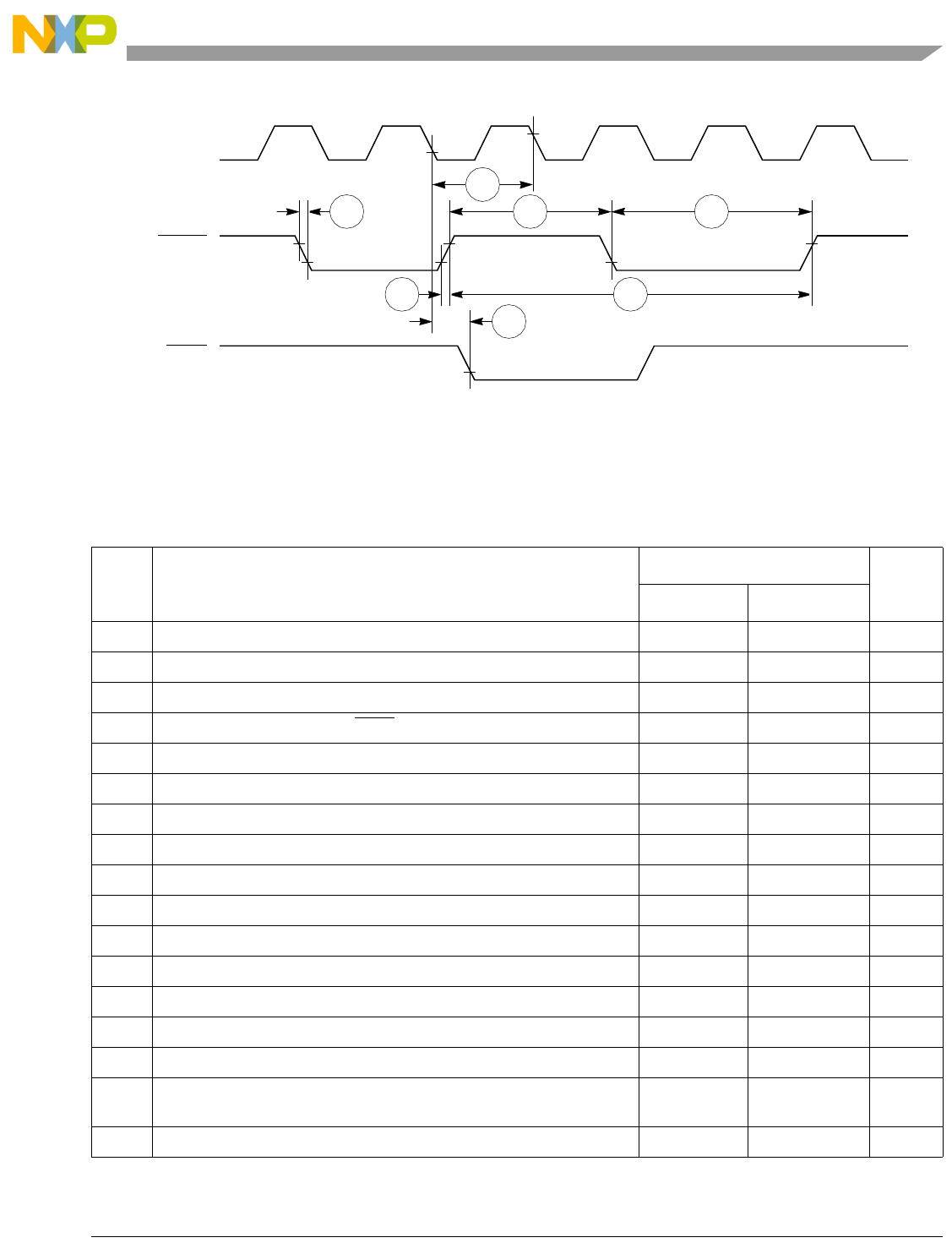

Figure 47. CPM General-Purpose Timers Timing Diagram
13.5 Serial Interface AC Electrical Specifications
Table 21 provides the serial interface (SI) timings as shown in Figure 48 through Figure 52.
Table 21. SI Timing
Num Characteristic All Frequencies Unit
Min Max
70 L1RCLKB, L1TCLKB frequency (DSC = 0)1, 2 — SYNCCLK/2.5 MHz
71 L1RCLKB, L1TCLKB width low (DSC = 0)2P + 10 — ns
71a L1RCLKB, L1TCLKB width high (DSC = 0)3P + 10 — ns
72 L1TXDB, L1ST1 and L1ST2, L1RQ, L1CLKO rise/fall time — 15.00 ns
73 L1RSYNCB, L1TSYNCB valid to L1CLKB edge (SYNC setup time) 20.00 — ns
74 L1CLKB edge to L1RSYNCB, L1TSYNCB, invalid (SYNC hold time) 35.00 — ns
75 L1RSYNCB, L1TSYNCB rise/fall time — 15.00 ns
76 L1RXDB valid to L1CLKB edge (L1RXDB setup time) 17.00 — ns
77 L1CLKB edge to L1RXDB invalid (L1RXDB hold time) 13.00 — ns
78 L1CLKB edge to L1ST1 and L1ST2 valid410.00 45.00 ns
78A L1SYNCB valid to L1ST1 and L1ST2 valid 10.00 45.00 ns
79 L1CLKB edge to L1ST1 and L1ST2 invalid 10.00 45.00 ns
80 L1CLKB edge to L1TXDB valid 10.00 55.00 ns
80A L1TSYNCB valid to L1TXDB valid410.00 55.00 ns
81 L1CLKB edge to L1TXDB high impedance 0.00 42.00 ns
82 L1RCLKB, L1TCLKB frequency (DSC = 1) — 16.00 or
SYNCCLK/2 MHz
83 L1RCLKB, L1TCLKB width low (DSC = 1) P + 10 — ns
CLKO
TIN/TGATE
(Input)
TOUT
(Output)
64
65
61
626361
60
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
52 Freescale Semiconductor
CPM Electrical Characteristics
Figure 48. SI Receive Timing Diagram with Normal Clocking (DSC = 0)
83a L1RCLKB, L1TCLKB width high (DSC = 1)3P + 10 — ns
84 L1CLKB edge to L1CLKOB valid (DSC = 1) — 30.00 ns
85 L1RQB valid before falling edge of L1TSYNCB41.00 — L1TCLK
86 L1GRB setup time242.00 — ns
87 L1GRB hold time 42.00 — ns
88 L1CLKB edge to L1SYNCB valid (FSD = 00) CNT = 0000, BYT = 0,
DSC = 0)
—0.00ns
1The ratio SYNCCLK/L1RCLKB must be greater than 2.5/1.
2These specs are valid for IDL mode only.
3Where P = 1/CLKOUT. Thus, for a 25-MHz CLKO1 rate, P = 40 ns.
4These strobes and TxD on the first bit of the frame become valid after the L1CLKB edge or L1SYNCB, whichever comes later.
Table 21. SI Timing (continued)
Num Characteristic All Frequencies Unit
Min Max
L1RXDB
(Input)
L1RCLKB
(FE = 0, CE = 0)
(Input)
L1RCLKB
(FE = 1, CE = 1)
(Input)
L1RSYNCB
(Input)
L1ST(2–1)
(Output)
71
72
70 71a
RFSD=1
75
73
74 77
78
76
79
BIT0
“mm A
O
J VJLV
O
O
éfififi
M
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 53
CPM Electrical Characteristics
Figure 49. SI Receive Timing with Double-Speed Clocking (DSC = 1)
L1RXDB
(Input)
L1RCLKB
(FE = 1, CE = 1)
(Input)
L1RCLKB
(FE = 0, CE = 0)
(Input)
L1RSYNCB
(Input)
L1ST(2–1)
(Output)
72
RFSD=1
75
73
74 77
78
76
79
83a
82
L1CLKOB
(Output)
84
BIT0
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
54 Freescale Semiconductor
CPM Electrical Characteristics

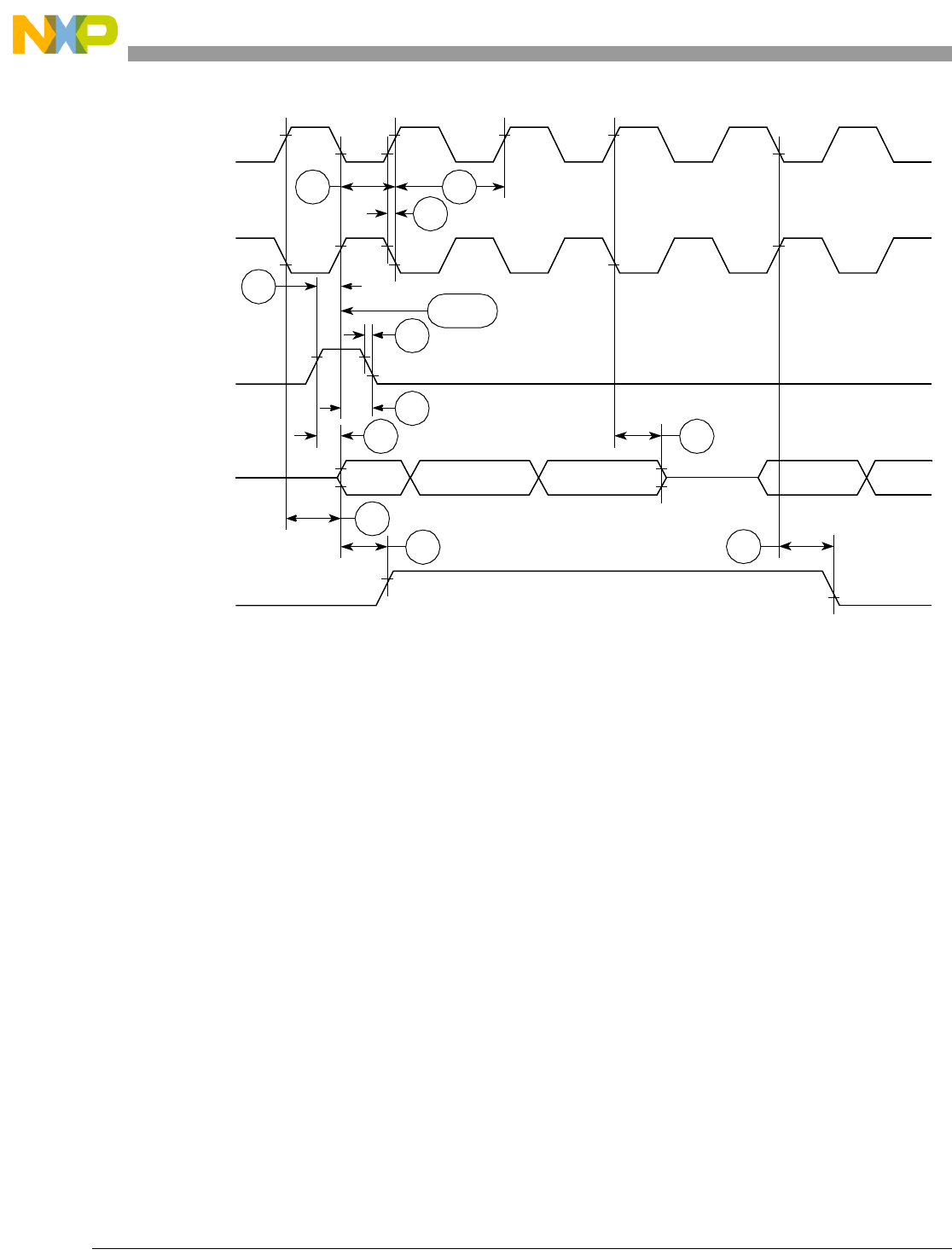

Figure 50. SI Transmit Timing Diagram (DSC = 0)
L1TXDB
(Output)
L1TCLKB
(FE = 0, CE = 0)
(Input)
L1TCLKB
(FE = 1, CE = 1)
(Input)
L1TSYNCB
(Input)
L1ST(2–1)
(Output)
71 70
72
73
75
74
80a
80
78
TFSD=0
81
79
BIT0
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 55
CPM Electrical Characteristics
Figure 51. SI Transmit Timing with Double Speed Clocking (DSC = 1)
L1TXDB
(Output)
L1RCLKB
(FE = 0, CE = 0)
(Input)
L1RCLKB
(FE = 1, CE = 1)
(Input)
L1RSYNCB
(Input)
L1ST(2–1)
(Output)
72
TFSD=0
75
73
74
78a
80
79
83a
82
L1CLKOB
(Output)
84
BIT0
78
81
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
56 Freescale Semiconductor
CPM Electrical Characteristics
Figure 52. IDL Timing
B17 B16 B14 B13 B12 B11 B10 D1 A B27 B26 B25 B24 B23 B22 B21 B20 D2 MB15
L1RXDB
(Input)
L1TXDB
(Output)
L1ST(2–1)
(Output)
L1RQB
(Output)
73
77
12345678910 11 12 13 14 15 16 17 18 19 20
74
80
B17 B16 B15 B14 B13 B12 B11 B10 D1 A B27 B26 B25 B24 B23 B22 B21 B20 D2 M
71
71
L1GRB
(Input)
78
85
72
76
87
86
L1RSYNCB
(Input)
L1RCLKB
(Input)
81
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 57
CPM Electrical Characteristics
13.6 SCC in NMSI Mode Electrical Specifications
Table 22 provides the NMSI external clock timing.
Table 23 provides the NMSI internal clock timing.
Table 22. NMSI External Clock Timing
Num Characteristic All Frequencies Unit
Min Max
100 RCLK3 and TCLK3 width high1
1The ratios SYNCCLK/RCLK3 and SYNCCLK/TCLK3 must be greater than or equal to 2.25/1.
1/SYNCCLK — ns
101 RCLK3 and TCLK3 width low 1/SYNCCLK + 5 — ns
102 RCLK3 and TCLK3 rise/fall time — 15.00 ns
103 TXD3 active delay (from TCLK3 falling edge) 0.00 50.00 ns
104 RTS3 active/inactive delay (from TCLK3 falling edge) 0.00 50.00 ns
105 CTS3 setup time to TCLK3 rising edge 5.00 — ns
106 RXD3 setup time to RCLK3 rising edge 5.00 — ns
107 RXD3 hold time from RCLK3 rising edge2
2Also applies to CD and CTS hold time when they are used as external SYNC signals.
5.00 — ns
108 CD3 setup time to RCLK3 rising edge 5.00 — ns
Table 23. NMSI Internal Clock Timing
Num Characteristic All Frequencies Unit
Min Max
100 RCLK3 and TCLK3 frequency1
1The ratios SYNCCLK/RCLK3 and SYNCCLK/TCLK3 must be greater or equal to 3/1.
0.00 SYNCCLK/3 MHz
102 RCLK3 and TCLK3 rise/fall time — — ns
103 TXD3 active delay (from TCLK3 falling edge) 0.00 30.00 ns
104 RTS3 active/inactive delay (from TCLK3 falling edge) 0.00 30.00 ns
105 CTS3 setup time to TCLK3 rising edge 40.00 — ns
106 RXD3 setup time to RCLK3 rising edge 40.00 — ns
107 RXD3 hold time from RCLK3 rising edge2
2Also applies to CD and CTS hold time when they are used as external SYNC signals.
0.00 — ns
108 CD3 setup time to RCLK3 rising edge 40.00 — ns
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
58 Freescale Semiconductor
CPM Electrical Characteristics
Figure 53 through Figure 55 show the NMSI timings.
Figure 53. SCC NMSI Receive Timing Diagram
Figure 54. SCC NMSI Transmit Timing Diagram
RCLK3
CD3
(Input)
102
100
107
108
107
RxD3
(Input)
CD3
(SYNC Input)
102 101
106
TCLK3
CTS3
(Input)
102
100
104
107
TxD3
(Output)
CTS3
(SYNC Input)
102 101
RTS3
(Output)
105
103
104
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 59
CPM Electrical Characteristics
Figure 55. HDLC Bus Timing Diagram
13.7 Ethernet Electrical Specifications
Table 24 provides the Ethernet timings as shown in Figure 56 through Figure 58.
Table 24. Ethernet Timing
Num Characteristic All Frequencies Unit
Min Max
120 CLSN width high 40 — ns
121 RCLK3 rise/fall time — 15 ns
122 RCLK3 width low 40 — ns
123 RCLK3 clock period180 120 ns
124 RXD3 setup time 20 — ns
125 RXD3 hold time 5—ns
126 RENA active delay (from RCLK3 rising edge of the last data bit) 10 — ns
127 RENA width low 100 — ns
128 TCLK3 rise/fall time — 15 ns
129 TCLK3 width low 40 — ns
130 TCLK3 clock period199 101 ns
131 TXD3 active delay (from TCLK3 rising edge) — 50 ns
132 TXD3 inactive delay (from TCLK3 rising edge) 6.5 50 ns
133 TENA active delay (from TCLK3 rising edge) 10 50 ns
134 TENA inactive delay (from TCLK3 rising edge) 10 50 ns
TCLK3
CTS3
(Echo Input)
102
100
104
TxD3
(Output)
102 101
RTS3
(Output)
103
104107
105
W
W
ffi
W
J'
'\
J
‘\
J
*
\
\
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
60 Freescale Semiconductor
CPM Electrical Characteristics
Figure 56. Ethernet Collision Timing Diagram
Figure 57. Ethernet Receive Timing Diagram
138 CLKO1 low to SDACK asserted2—20ns
139 CLKO1 low to SDACK negated2—20ns
1The ratios SYNCCLK/RCLK3 and SYNCCLK/TCLK3 must be greater than or equal to 2/1.
2SDACK is asserted whenever the SDMA writes the incoming frame DA into memory.
Table 24. Ethernet Timing (continued)
Num Characteristic All Frequencies Unit
Min Max
CLSN(CTS1)
120
(Input)
RCLK3
121
RxD3
(Input)
121
RENA(CD3)
(Input)
125
124 123
127
126
Last Bit
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 61
CPM Electrical Characteristics
Figure 58. Ethernet Transmit Timing Diagram
13.8 SMC Transparent AC Electrical Specifications
Table 25 provides the SMC transparent timings as shown in Figure 59.
Table 25. SMC Transparent Timing
Num Characteristic All Frequencies Unit
Min Max
150 SMCLK clock period1
1 SYNCCLK must be at least twice as fast as SMCLK.
100 — ns
151 SMCLK width low 50 — ns
151A SMCLK width high 50 — ns
152 SMCLK rise/fall time — 15 ns
153 SMTXD active delay (from SMCLK falling edge) 10 50 ns
154 SMRXD/SMSYNC setup time 20 — ns
155 RXD1/SMSYNC hold time 5 — ns
TCLK3
128
TxD3
(Output)
128
TENA(RTS3)
(Input)
Notes:
Transmit clock invert (TCI) bit in GSMR is set.
If RENA is negated before TENA or RENA is not asserted at all during transmit, then the
CSL bit is set in the buffer descriptor at the end of the frame transmission.
1.
2.
RENA(CD3)
(Input)
133 134
132
131 121
129
(Note 2)
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
62 Freescale Semiconductor
CPM Electrical Characteristics
Figure 59. SMC Transparent Timing Diagram
13.9 SPI Master AC Electrical Specifications
Table 26 provides the SPI master timings as shown in Figure 60 and Figure 61.
Table 26. SPI Master Timing
Num Characteristic All Frequencies Unit
Min Max
160 Master cycle time 4 1024 tcyc
161 Master clock (SCK) high or low time 2 512 tcyc
162 Master data setup time (inputs) 15 — ns
163 Master data hold time (inputs) 0 — ns
164 Master data valid (after SCK edge) — 10 ns
165 Master data hold time (outputs) 0 — ns
166 Rise time output — 15 ns
167 Fall time output —15ns
SMCLK
SMRXD
(Input)
152
150
SMTXD
(Output)
152 151
SMSYNC
151
154 153
155
154
155
Note 1
Note:
This delay is equal to an integer number of character-length clocks.1.
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 63
CPM Electrical Characteristics
Figure 60. SPI Master (CP = 0) Timing Diagram
Figure 61. SPI Master (CP = 1) Timing Diagram
SPIMOSI
(Output)
SPICLK
(CI = 0)
(Output)
SPICLK
(CI = 1)
(Output)
SPIMISO
(Input)
162
Data
166167161
161 160
msb lsb msb
msb Data lsb msb
167 166
163
166
167
165 164
SPIMOSI
(Output)
SPICLK
(CI = 0)
(Output)
SPICLK
(CI = 1)
(Output)
SPIMISO
(Input)
Data
166167161
161 160
msb lsb msb
msb Data lsb msb
167 166
163
166
167
165 164
162
msb Data lsb msb
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
64 Freescale Semiconductor
CPM Electrical Characteristics
13.10 SPI Slave AC Electrical Specifications
Table 27 provides the SPI slave timings as shown in Figure 62 and Figure 63.
Figure 62. SPI Slave (CP = 0) Timing Diagram
Table 27. SPI Slave Timing
Num Characteristic All Frequencies Unit
Min Max
170 Slave cycle time 2—t
cyc
171 Slave enable lead time 15 — ns
172 Slave enable lag time 15 — ns
173 Slave clock (SPICLK) high or low time 1 — tcyc
174 Slave sequential transfer delay (does not require deselect) 1 — tcyc
175 Slave data setup time (inputs) 20 — ns
176 Slave data hold time (inputs) 20 — ns
177 Slave access time — 50 ns
SPIMOSI
(Input)
SPICLK
(CI = 0)
(Input)
SPICLK
(CI = 1)
(Input)
SPIMISO
(Output)
180
Data
181182173
173 170
msb lsb msb
181
177 182
175 179
SPISEL
(Input)
171172
174
Datamsb lsb msbUndef
181
178
176 182
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 65
CPM Electrical Characteristics
Figure 63. SPI Slave (CP = 1) Timing Diagram
13.11 I2C AC Electrical Specifications
Table 28 provides the I2C (SCL < 100 kHz) timings.
Table 28. I2C Timing (SCL < 100 kHZ)
Num Characteristic All Frequencies Unit
Min Max
200 SCL clock frequency (slave) 0 100 kHz
200 SCL clock frequency (master)11.5 100 kHz
202 Bus free time between transmissions 4.7 — μs
203 Low period of SCL 4.7 — μs
204 High period of SCL 4.0 — μs
205 Start condition setup time 4.7 — μs
206 Start condition hold time 4.0 — μs
207 Data hold time 0—μs
208 Data setup time 250 — ns
209 SDL/SCL rise time — 1 μs
SPIMOSI
(Input)
SPICLK
(CI = 0)
(Input)
SPICLK
(CI = 1)
(Input)
SPIMISO
(Output)
180
Data
181182
msb lsb
181
177 182
175 179
SPISEL
(Input)
174
Data
msb lsbUndef
178
176 182
msb
msb
172
173
173
171 170
181
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
66 Freescale Semiconductor
CPM Electrical Characteristics
Table 29 provides the I2C (SCL > 100 kHz) timings.
Figure 64 shows the I2C bus timing.
Figure 64. I2C Bus Timing Diagram
210 SDL/SCL fall time — 300 ns
211 Stop condition setup time 4.7 — μs
1SCL frequency is given by SCL = BRGCLK_frequency/((BRG register + 3) ×pre_scalar ×2).
The ratio SYNCCLK/(BRGCLK/pre_scalar) must be greater than or equal to 4/1.
Table 29. I2C Timing (SCL > 100 kHZ)
Num Characteristic Expression All Frequencies Unit
Min Max
200 SCL clock frequency (slave) fSCL 0 BRGCLK/48 Hz
200 SCL clock frequency (master)1
1SCL frequency is given by SCL = BRGCLK_frequency/((BRG register + 3) ×pre_scalar ×2).
The ratio SYNCCLK/(BRGCLK/pre_scalar) must be greater than or equal to 4/1.
fSCL BRGCLK/16512 BRGCLK/48 Hz
202 Bus free time between transmissions — 1/(2.2 ×fSCL) — s
203 Low period of SCL — 1/(2.2 ×fSCL) — s
204 High period of SCL — 1/(2.2 ×fSCL) — s
205 Start condition setup time — 1/(2.2 ×fSCL) — s
206 Start condition hold time — 1/(2.2 ×fSCL) — s
207 Data hold time — 0 — s
208 Data setup time — 1/(40 ×fSCL) — s
209 SDL/SCL rise time — — 1/(10 ×fSCL) s
210 SDL/SCL fall time — — 1/(33 ×fSCL) s
211 Stop condition setup time — 1/2(2.2 ×fSCL) — s
Table 28. I2C Timing (SCL < 100 kHZ) (continued)
Num Characteristic All Frequencies Unit
Min Max
SCL
202
205
203
207
204
208
206 209 211210
SDA
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 67
USB Electrical Characteristics
14 USB Electrical Characteristics
This section provides the AC timings for the USB interface.
14.1 USB Interface AC Timing Specifications
The USB Port uses the transmit clock on SCC1. Table 30 lists the USB interface timings.
15 FEC Electrical Characteristics
This section provides the AC electrical specifications for the Fast Ethernet controller (FEC). Note that the
timing specifications for the MII signals are independent of system clock frequency (part speed
designation). Also, MII signals use TTL signal levels compatible with devices operating at either 5.0 or
3.3 V.
15.1 MII and Reduced MII Receive Signal Timing
The receiver functions correctly up to a MII_RX_CLK maximum frequency of 25 MHz + 1%. The
reduced MII (RMII) receiver functions correctly up to a RMII_REFCLK maximum frequency of 50 MHz
+ 1%. There is no minimum frequency requirement. In addition, the processor clock frequency must
exceed the MII_RX_CLK frequency – 1%.
Table 31 provides information on the MII receive signal timing.
Table 30. USB Interface AC Timing Specifications
Name Characteristic All Frequencies Unit
Min Max
US1 USBCLK frequency of operation1
Low speed
Full speed
1USBCLK accuracy should be ±500 ppm or better. USBCLK may be stopped to conserve power.
6
48
MHz
US4 USBCLK duty cycle (measured at 1.5 V) 45 55 %
Table 31. MII Receive Signal Timing
Num Characteristic Min Max Unit
M1 MII_RXD[3:0], MII_RX_DV, MII_RX_ER to MII_RX_CLK setup 5 — ns
M2 MII_RX_CLK to MII_RXD[3:0], MII_RX_DV, MII_RX_ER hold 5 — ns
M3 MII_RX_CLK pulse width high 35% 65% MII_RX_CLK period
M4 MII_RX_CLK pulse width low 35% 65% MII_RX_CLK period
M1_RMII RMII_RXD[1:0], RMII_CRS_DV, RMII_RX_ERR to RMII_REFCLK
setup
4— ns
M2_RMII RMII_REFCLK to RMII_RXD[1:0], RMII_CRS_DV, RMII_RX_ERR
hold
2— ns
XX
XX
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
68 Freescale Semiconductor
FEC Electrical Characteristics
Figure 65 shows MII receive signal timing.
Figure 65. MII Receive Signal Timing Diagram
15.2 MII and Reduced MII Transmit Signal Timing
The transmitter functions correctly up to a MII_TX_CLK maximum frequency of 25 MHz + 1%. There is
no minimum frequency requirement. In addition, the processor clock frequency must exceed the
MII_TX_CLK frequency – 1%.
Table 32 provides information on the MII transmit signal timing.
Table 32. MII Transmit Signal Timing
Num Characteristic Min Max Unit
M5 MII_TX_CLK to MII_TXD[3:0], MII_TX_EN, MII_TX_ER invalid 5 — ns
M6 MII_TX_CLK to MII_TXD[3:0], MII_TX_EN, MII_TX_ER valid — 25 ns
M7 MII_TX_CLK pulse width high 35% 65% MII_TX_CLK period
M8 MII_TX_CLK pulse width low 35% 65% MII_TX_CLK period
M20_RMII RMII_TXD[1:0], RMII_TX_EN to RMII_REFCLK setup 4 — ns
M21_RMII RMII_TXD[1:0], RMII_TX_EN data hold from RMII_REFCLK rising
edge
2— ns
M1 M2
MII_RX_CLK (Input)
MII_RXD[3:0] (Inputs)
MII_RX_DV
MII_RX_ER
M3
M4
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 69
FEC Electrical Characteristics
Figure 66 shows the MII transmit signal timing diagram.
Figure 66. MII Transmit Signal Timing Diagram
15.3 MII Async Inputs Signal Timing (MII_CRS, MII_COL)
Table 33 provides information on the MII async inputs signal timing.
Figure 67 shows the MII asynchronous inputs signal timing diagram.
Figure 67. MII Async Inputs Timing Diagram
15.4 MII Serial Management Channel Timing (MII_MDIO, MII_MDC)
Table 34 provides information on the MII serial management channel signal timing. The FEC functions
correctly with a maximum MDC frequency in excess of 2.5 MHz.
Table 33. MII Async Inputs Signal Timing
Num Characteristic Min Max Unit
M9 MII_CRS, MII_COL minimum pulse width 1.5 — MII_TX_CLK period
Table 34. MII Serial Management Channel Timing
Num Characteristic Min Max Unit
M10 MII_MDC falling edge to MII_MDIO output invalid (minimum propagation
delay)
0— ns
M11 MII_MDC falling edge to MII_MDIO output valid (max prop delay) — 25 ns
M12 MII_MDIO (input) to MII_MDC rising edge setup 10 — ns
M13 MII_MDIO (input) to MII_MDC rising edge hold 0 — ns
M14 MII_MDC pulse width high 40% 60% MII_MDC period
M15 MII_MDC pulse width low 40% 60% MII_MDC period
M6
MII_TX_CLK (Input)
MII_TXD[3:0] (Outputs)
MII_TX_EN
MII_TX_ER
M5
M7
M8
MII_CRS, MII_COL
M9
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
70 Freescale Semiconductor
FEC Electrical Characteristics
Figure 68 shows the MII serial management channel timing diagram.
Figure 68. MII Serial Management Channel Timing Diagram
M11
MII_MDC (Output)
MII_MDIO (Output)
M12 M13
MII_MDIO (Input)
M10
M14
MM15
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 71
Mechanical Data and Ordering Information
16 Mechanical Data and Ordering Information
Table 35 identifies the packages and operating frequencies available for the MPC875/MPC870.
Table 35. Available MPC875/MPC870 Packages/Frequencies
Package Type Temperature (TJ) Frequency (MHz) Order Number
Plastic ball grid array
ZT suffix—Leaded
VR suffix—Lead-Free are available as needed
0°C to 95°C 66 KMPC875ZT66
KMPC870ZT66
MPC875ZT66
MPC870ZT66
80 KMPC875ZT80
KMPC870ZT80
MPC875ZT80
MPC870ZT80
133 KMPC875ZT133
KMPC870ZT133
MPC875ZT133
MPC870ZT133
Plastic ball grid array
CZT suffix—Leaded
CVR suffix—Lead-Free are available as needed
-40°C to 100°C 66 KMPC875CZT66
KMPC870CZT66
MPC875CZT66
MPC870CZT66
133 KMPC875CZT133
KMPC870CZT133
MPC875CZT133
MPC870CZT133
OOOO
00000000
00000000
070000000
070000000
99000000
90000000
00000000
00000000
00000000
00000000
00000000
00000000
00000000,
00000000
00000000
00000000
OOOOOOOOOOOO
OOQ
OOOOOOOOOOOOOOOO
0
0000000000000000
OOOOOOOOOOOOOOOO
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
72 Freescale Semiconductor
Mechanical Data and Ordering Information
16.1 Pin Assignments
Figure 69 shows the JEDEC pinout of the PBGA package as viewed from the top surface. For additional
information, see the MPC885 PowerQUICC Family User’s Manual.
NOTE
The pin numbering starts with B2 in order to conform to the JEDEC standard for
23-mm body size using a 16 ×16 array.
NOTE: This is the top view of the device.
Figure 69. Pinout of the PBGA Package—JEDEC Standard
MODCK2
IPA7
IPA4
D31
D29
D7
D18
D5
D3
D11
D10
N/C
EXTCLK MODCK1 OP0 ALEA IPB0 BURST IRQ6 BR TEA BI CS0 CS3 CS5 N/C
RSTCONFSRESET BADDR29 OP1
XTAL
IPA2 WAITA PORESET EXTAL BADDR30 IPB1 BG GPLA4 GPLA5 WR CE2A CS7 WE2
IPA5 IPA3 VDDSYN
AS ALEB IRQ2 BB
HRESET BADDR28 IRQ3
D30 IPA6
TS TA BDIP CS2 CE1A GPLAB3 GPLA0
CS1 GPLB4 CS4 GPLAB2 WE0 BSA1 BSA2
B
C
D
E
D28 CLKOUT
D22 D6 D24
D19 D20
D15 D16
D2 D27
D9 D12
D1
D23 D17 PE22
D4 D8 PE25
TSIZ0 A31
A22 A18
A25 A24
A20 A29
G
H
J
F
A27 A17
A15 A16
A11 A13
A7 A9
A5 A4
A0 PB29
K
L
VDDH
M
N
PE26 PD8 PA1 N/C PB30PE27
PE20 PE23 MII-TX-EN
PE17 PE21 PC7 PB19 PB24 TDI TMS PC12
PA14 N/C
PE15
PE29 PE24 PC13 MII-CRS PC10 PB23 PB25 TRST GND
P
R
T
PE16
234567 8910111213141516
IPA1
D26
D25
D14
D0
PE18
IRQ7
IRQ1
PA3
PB31
PA0 PE14 PE31 PC6 PA6 PC11 TDO PA15 A3PA4
PE28 PE30 PA11 MII_COL PA7 TCK PB28 PC15PE19
BSA0 BSA3
TSIZ1 A26
A28 A30
A23 A21
A14 A19
A10 A12
A2 A8
A1 A6
IRQ4VSSSYN
WE1
PA10
D13
D21
VSSSYN1 CS6 OE
PA2 PB26 PB27
TEXP
17
U
IRQ0
IPA0
MII_MDIO
WE3
VDDH VDDH
VDDH
VDDH
VDDH
VDDH
VDDH
VDDH
VDDL VDDL
VDDL
VDDL
VDDL
VDDL
VDDL
VDDL GND
GND
GND
GND
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 73
Mechanical Data and Ordering Information
Table 36 contains a list of the MPC875/MPC870 input and output signals and shows multiplexing and pin
assignments.
Table 36. Pin Assignments—JEDEC Standard
Name Pin Number Type
A[0:31] R16, N14, M14, P15, P17, P16, N15, N16, M15, N17, L14, M16,
L15, M17, K14, L16, L17, K17, G17, K15, J16, J15, G16, J14, H17,
H16, G15, K16, H14, J17, H15, F17
Bidirectional
Three-state (3.3 V only)
TSIZ0, REG F16 Bidirectional
Three-state (3.3 V only)
TSIZ1 G14 Bidirectional
Three-state (3.3 V only)
RD/WR D13 Bidirectional
Three-state (3.3 V only)
BURST B9 Bidirectional
Three-state (3.3 V only)
BDIP
, GPL_B5 C13 Output
TS C11 Bidirectional
Active pull-up (3.3 V only)
TA C12 Bidirectional
Active pull-up (3.3 V only)
TEA B12 Open-drain
BI B13 Bidirectional
Active pull-up (3.3 V only)
IRQ2, RSV C9 Bidirectional
Three-state (3.3 V only)
IRQ4, KR, RETRY,
SPKROUT
E9 Bidirectional
Three-state (3.3 V only)
D[0:31] L5, N3, L3, L2, R2, K2, H3, G2, R3, M3, N2, M2, M4, N4, K5, K3, K4,
P3, J2, J3, J4, J5, H2, P2, H4, H5, G5, L4, G3, F2, F3, E2 Bidirectional
Three-state (3.3 V only)
CR, IRQ3 E10 Input
FRZ, IRQ6 B10 Bidirectional
Three-state (3.3 V only)
BR B11 Bidirectional (3.3 V only)
BG D10 Bidirectional (3.3 V only)
BB C10 Bidirectional
Active pull-up (3.3 V only)
IRQ0 M6 Input (3.3 V only)
IRQ1 P5 Input (3.3 V only)
IRQ7 N5 Input (3.3 V only)
CS[0:5] B14, E11, C14, B15, E13, B16 Output
%
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
74 Freescale Semiconductor
Mechanical Data and Ordering Information
CS6, CE1_B F12 Output
CS7, CE2_B D15 Output
WE0, BS_B0, IORD E15 Output
WE1, BS_B1, IOWR D17 Output
WE2, BS_B2, PCOE D16 Output
WE3, BS_B3, PCWE G13 Output
BS_A[0:3] F14, E16, E17, F15 Output
GPL_A0, GPL_B0 C17 Output
OE, GPL_A1, GPL_B1 F13 Output
GPL_A[2:3], GPL_B[2:3],
CS[2–3] E14, C16 Output
UPWAITA, GPL_A4 D11 Bidirectional (3.3 V only)
UPWAITB, GPL_B4 E12 Bidirectional
GPL_A5 D12 Output
PORESET D5 Input (3.3 V only)
RSTCONF C3 Input (3.3 V only)
HRESET E7 Open-drain
SRESET C4 Open-drain
XTAL D6 Analog output
EXTAL D7 Analog input (3.3 V only)
CLKOUT G4 Output
EXTCLK B4 Input (3.3 V only)
TEXP B3 Output
ALE_A B7 Output
CE1_A C15 Output
CE2_A D14 Output
WAIT_A D4 Input (3.3 V only)
IP_A0 G6 Input (3.3 V only)
IP_A1 F5 Input (3.3 V only)
IP_A2, IOIS16_A D3 Input (3.3 V only)
IP_A3 E4 Input (3.3 V only)
IP_A4 D2 Input (3.3 V only)
IP_A5 E3 Input (3.3 V only)
Table 36. Pin Assignments—JEDEC Standard (continued)
Name Pin Number Type
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 75
Mechanical Data and Ordering Information
IP_A6 F4 Input (3.3 V only)
IP_A7 C2 Input (3.3 V only)
ALE_B, DSCK C8 Bidirectional
Three-state (3.3 V only)
IP_B[0:1], IWP[0:1],
VFLS[0:1]
B8, D9 Bidirectional (3.3 V only)
OP0 B6 Bidirectional (3.3 V only)
OP1 C6 Output
OP2, MODCK1, STS B5 Bidirectional (3.3 V only)
OP3, MODCK2, DSDO B2 Bidirectional (3.3 V only)
BADDR[28:29] E8, C5 Output
BADDR30, REG D8 Output
AS C7 Input (3.3 V only)
PA15, USBRXD P14 Bidirectional
PA14, USBOE U16 Bidirectional
(Optional: open-drain)
PA11, RXD4, MII1-TXD0,
RMII1-TXD0
R9 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PA10, MII1-TXERR, TIN4,
CLK7
R12 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PA7, CLK1, BRGO1, TIN1 R11 Bidirectional
PA6, CLK2, TOUT1 P11 Bidirectional
PA4, CTS4, MII1-TXD1,
RMII-TXD1 P7 Bidirectional
PA3, MII1-RXER,
RMII1-RXER, BRGO3
R5 Bidirectional
(5-V tolerant)
PA2, MII1-RXDV,
RMII1-CRS_DV, TXD4
N6 Bidirectional
(5-V tolerant)
PA1, MII1-RXD0,
RMII1-RXD0, BRGO4
T4 Bidirectional
(5-V tolerant)
PA0, MII1-RXD1,
RMII1-RXD1, TOUT4
P6 Bidirectional
(5-V tolerant)
PB31, SPISEL, MII1-TXCLK,
RMII1-REFCLK
T5 Bidirectional
(Optional: open-drain)
(5-V tolerant)
Table 36. Pin Assignments—JEDEC Standard (continued)
Name Pin Number Type
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
76 Freescale Semiconductor
Mechanical Data and Ordering Information
PB30, SPICLK T17 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PB29, SPIMOSI R17 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PB28, SPIMISO, BRGO4 R14 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PB27, I2CSDA, BRGO1 N13 Bidirectional
(Optional: open-drain)
PB26, I2CSCL, BRGO2 N12 Bidirectional
(Optional: open-drain)
PB25, SMTXD1 U13 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PB24, SMRXD1 T12 Bidirectional
(Optional: open-drain)
(5-V tolerant)
PB23, SDACK1, SMSYN1 U12 Bidirectional
(Optional: open-drain)
PB19, MII1-RXD3, RTS4 T11 Bidirectional
(Optional: open-drain)
PC15, DREQ0, L1ST1 R15 Bidirectional
(5-V tolerant)
PC13, MII1-TXD3, SDACK1 U9 Bidirectional
(5-V tolerant)
PC12, MII1-TXD2, TOUT1 T15 Bidirectional
(5-V tolerant)
PC11, USBRXP P12 Bidirectional
PC10, USBRXN, TGATE1 U11 Bidirectional
PC7, CTS4, L1TSYNCB,
USBTXP
T10 Bidirectional
(5-V tolerant)
PC6, CD4, L1RSYNCB,
USBTXN
P10 Bidirectional
(5-V tolerant)
PD8, RXD4, MII-MDC,
RMII-MDC T3 Bidirectional
(5-V tolerant)
PE31, CLK8, L1TCLKB,
MII1-RXCLK
P9 Bidirectional
(Optional: open-drain)
PE30, L1RXDB, MII1-RXD2 R8 Bidirectional
(Optional: open-drain)
Table 36. Pin Assignments—JEDEC Standard (continued)
Name Pin Number Type
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 77
Mechanical Data and Ordering Information
PE29, MII2-CRS U7 Bidirectional
(Optional: open-drain)
PE28, TOUT3, MII2-COL R7 Bidirectional
(Optional: open-drain)
PE27, L1RQB, MII2-RXERR,
RMII2-RXERR
T6 Bidirectional
(Optional: open-drain)
PE26, L1CLKOB,
MII2-RXDV, RMII2-CRS_DV
T2 Bidirectional
(Optional: open-drain)
PE25, RXD4, MII2-RXD3,
L1ST2
R4 Bidirectional
(Optional: open-drain)
PE24, SMRXD1, BRGO1,
MII2-RXD2
U8 Bidirectional
(Optional: open-drain)
PE23, TXD4, MII2-RXCLK,
L1ST1 U4 Bidirectional
(Optional: open-drain)
PE22, TOUT2, MII2-RXD1,
RMII2-RXD1, SDACK1
P4 Bidirectional
(Optional: open-drain)
PE21, TOUT1, MII2-RXD0,
RMII2-RXD0
T9 Bidirectional
(Optional: open-drain)
PE20, MII2-TXER U3 Bidirectional
(Optional: open-drain)
PE19, L1TXDB, MII2-TXEN,
RMII2-TXEN
R6 Bidirectional
(Optional: open-drain)
PE18, SMTXD1, MII2-TXD3 M5 Bidirectional
(Optional: open-drain)
PE17, TIN3, CLK5, BRGO3,
SMSYN1, MII2-TXD2
T8 Bidirectional
(Optional: open-drain)
PE16, L1RCLKB, CLK6,
MII2-TXCLK, RMII2-REFCLK U6 Bidirectional
(Optional: open-drain)
PE15, TGATE1, MII2-TXD1,
RMII2-TXD1
T7 Bidirectional
PE14, MII2-TXD0,
RMII2-TXD0
P8 Bidirectional
TMS T14 Input
(5-V tolerant)
TDI, DSDI T13 Input
(5-V tolerant)
TCK, DSCK R13 Input
(5-V tolerant)
TRST U14 Input
(5-V tolerant)
Table 36. Pin Assignments—JEDEC Standard (continued)
Name Pin Number Type
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
78 Freescale Semiconductor
Mechanical Data and Ordering Information
TDO, DSDO P13 Output
(5-V tolerant)
MII1_CRS U10 Input
MII_MDIO M13 Bidirectional
(5-V tolerant)
MII1_TX_EN, RMII1_TX_EN U5 Output
(5-V tolerant)
MII1_COL R10 Input
VSSSYN E5 PLL analog GND
VSSSYN1 F6 PLL analog GND
VDDSYN E6 PLL analog VDD
GND H8, H9, H10, H11, J8, J9, J10, J11, K8, K9, K10, K11, L8, L9, L10,
L11, U15
Power
VDDL F7, F8, F9, F10, F11, H6, H13, J6, J13, K6, K13, L6, L13, N7, N8,
N9, N10, N11
Power
VDDH G7, G8, G9, G10, G11, G12, H7, H12, J7, J12, K7, K12, L7, L12, M7,
M8, M9, M10, M11, M12
Power
N/C B17, T16, U2, U17 No connect
Table 36. Pin Assignments—JEDEC Standard (continued)
Name Pin Number Type
SEAT‘NG
A1 \NDEX PLANE
256x 5-- \P
:
INSI ,
J
K x
3‘
J
:\
9‘
ME. ~‘
Z‘
TOP vwa ‘
x
(1905) ‘
15Xt27 "
0635 ‘
J x
u \ 3)
r x
R
P ,
N ,
M 7, D
L D
f (1905) + 0.5
H ‘22; D5
(3 ‘12
r 2547. .
E 2‘?
D
C
B
09 S‘DE V‘EW
256x w
‘ H‘ VJMVS‘ v7 0'6
(D 05® A B C
BOTTOM vwa $WLHJU
om UN
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 79
Mechanical Data and Ordering Information
16.2 Mechanical Dimensions of the PBGA Package
Figure 70 shows the mechanical dimensions of the PBGA package.
.
Figure 70. Mechanical Dimensions and Bottom Surface Nomenclature of the PBGA Package
Note: Solder sphere composition is 95.5%Sn 45%Ag 0.5%Cu for MPC875/MPC870VRXXX.
Solder sphere composition is 62%Sn 36%Pb 2%Ag for MPC875/MPC870ZTXXX.
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M—1994.
3. MAXIMUM SOLDER BALL DIAMETER MEASURED PARALLEL TO DATUM A.
4. DATUM A, THE SEATING PLANE, IS DEFINED BY THE SPHERICAL CROWNS OF THE SOLDER BALLS.
NOTES:
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
80 Freescale Semiconductor
Document Revision History
17 Document Revision History
Table 37 lists significant changes between revisions of this hardware specification.
Table 37. Document Revision History
Revision
Number Date Changes
0 2/2003 Initial release.
0.1 3/2003 Took out the time-slot assigner and changed the SCC for SCC3 to SCC4.
0.2 5/2003 Changed the package drawing, removed all references to Data Parity. Changed the SPI Master Timing
Specs. 162 and 164. Added the RMII and USB timing. Added the 80-MHz timing.
0.3 5/2003 Made sure the pin types were correct. Changed the Features list to agree with the MPC885.
0.4 5/2003 Corrected the signals that had overlines on them. Made corrections on two pins that were typos.
0.5 5/2003 Changed the pin descriptions for PD8 and PD9.
0.6 5/2003 Changed a few typos. Put back the I2C. Put in the new reset configuration, corrected the USB timing.
0.7 6/2003 Changed the pin descriptions per the June 22 spec, removed Utopia from the pin descriptions,
changed PADIR, PBDIR, PCDIR and PDDIR to be 0 in the Mandatory Reset Config.
0.8 8/2003 Added the reference to USB 2.0 to the Features list and removed 1.1 from USB on the block diagrams.
0.9 8/2003 Changed the USB description to full-/low-speed compatible.
1.0 9/2003 Added the DSP information in the Features list.
Put a new sentence under Mechanical Dimensions.
Fixed table formatting.
Nontechnical edits.
Released to the external web.
1.1 10/2003 Added TDMb to the MPC875 Features list, the MPC875 Block Diagram, added 13.5 Serial Interface
AC Electrical Specifications, and removed TDMa from the pin descriptions.
2.0 12/2003 Changed DBGC in the Mandatory Reset Configuration to X1.
Changed the maximum operating frequency to 133 MHz.
Put the timing in the 80 MHz column.
Put in the orderable part numbers.
Rounded the timings to hundredths in the 80 MHz column.
Put the pin numbers in footnotes by the maximum currents in Table 6.
Changed 22 and 41 in the Timing.
Put TBD in the Thermal table.
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 81
Document Revision History
3.0 1/07/2004
7/19/2004
• Added sentence to Spec B1A about EXTCLK and CLKOUT being in alignment for integer values.
• Added a footnote to Spec 41 specifying that EDM = 1.
• Added the thermal numbers to Table 4.
• Added RMII1_EN under M1II_EN in Table 36, Pin Assignments.
• Added a table footnote to Table 6, DC Electrical Specifications, about meeting the VIL Max of the
I2C Standard.
• Put the new part numbers in the Ordering Information Section.
4 08/2007 • Updated template.
• On page 1, updated first paragraph and added a second paragraph.
• After Table 2, inserted a new figure showing the undershoot/overshoot voltage (Figure 3) and
renumbered the rest of the figures.
•In Ta ble 1 0, for reset timings B29f and B29g added footnote indicating that the formula only applies
to bus operation up to 50 MHz.
•In Figure 5, changed all reference voltage measurement points from 0.2 and 0.8 V to 50% level.
•In Tabl e 18, changed num 46 description to read, “TA assertion to rising edge ...”
•In Figure 43, changed TA to reflect the rising edge of the clock.
Table 37. Document Revision History (continued)
Revision
Number Date Changes
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
82 Freescale Semiconductor
Document Revision History
THIS PAGE INTENTIONALLY LEFT BLANK
MPC875/MPC870 PowerQUICC™ Hardware Specifications, Rev. 4
Freescale Semiconductor 83
Document Revision History
THIS PAGE INTENTIONALLY LEFT BLANK
0"
:" freescalew
Pr: we r semiconductor
Document Number: MPC875EC
Rev. 4
08/2007
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductor products. There are no express or
implied copyright licenses granted hereunder to design or fabricate any integrated
circuits or integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to
any products herein. Freescale Semiconductor makes no warranty, representation or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of
any product or circuit, and specifically disclaims any and all liability, including without
limitation consequential or incidental damages. “Typical” parameters which may be
provided in Freescale Semiconductor data sheets and/or specifications can and do
vary in different applications and actual performance may vary over time. All operating
parameters, including “Typicals” must be validated for each customer application by
customer’s technical experts. Freescale Semiconductor does not convey any license
under its patent rights nor the rights of others. Freescale Semiconductor products are
not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life,
or for any other application in which the failure of the Freescale Semiconductor product
could create a situation where personal injury or death may occur. Should Buyer
purchase or use Freescale Semiconductor products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of,
directly or indirectly, any claim of personal injury or death associated with such
unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.
How to Reach Us:
Home Page:
www.freescale.com
Web Support:
http://www.freescale.com/support
USA/Europe or Locations Not Listed:
Freescale Semiconductor, Inc.
Technical Information Center, EL516
2100 East Elliot Road
Tempe, Arizona 85284
+1-800-521-6274 or
+1-480-768-2130
www.freescale.com/support
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
www.freescale.com/support
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku
Tokyo 153-0064
Japan
0120 191014 or
+81 3 5437 9125
support.japan@freescale.com
Asia/Pacific:
Freescale Semiconductor Hong Kong Ltd.
Technical Information Center
2 Dai King Street
Tai Po Industrial Estate
Tai Po, N.T., Hong Kong
+800 2666 8080
support.asia@freescale.com
For Literature Requests Only:
Freescale Semiconductor
Literature Distribution Center
P.O. Box 5405
Denver, Colorado 80217
+1-800 441-2447 or
+1-303-675-2140
Fax: +1-303-675-2150
LDCForFreescaleSemiconductor
@hibbertgroup.com
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
The Power Architecture and Power.org word marks and the Power and Power.org logos
and related marks are trademarks and service marks licensed by Power.org. IEEE
802.3, 802.11i, and 1149.1 are trademarks or registered trademarks of the Institute of
Electrical and Electronics Engineers, Inc. (IEEE). This product is not endorsed or
approved by the IEEE. All other product or service names are the property of their
respective owners.
© Freescale Semiconductor, Inc., 2003–2007. All rights reserved.
Products related to this Datasheet
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 66MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
IC MPU MPC8XX 133MHZ 256BGA
IC MPU MPC8XX 80MHZ 256BGA
